I’ve previously spent time reviewing 4 different 7Artisans lenses, most all of them relatively inexpensive manual-everything lenses designed for APS-C and smaller sensors.  But recently the company reached out to me and asked about the possibility of my reviewing a very different kind of lens from them – the higher end Spectrum line-up of full frame Cinema lenses.  At the moment these come in three varieties – a 35mm T2.0, a 50mm T2.0 (being reviewed today), and an 85mm T2.0.  Each of these is available in Sony E (which I’m reviewing on), Canon RF, Lumix (or Leica) L, and Nikon Z.  After spending some time with the Spectrum 50 (as I’ll call it for brevity here), I’m certainly interested in looking at the rest of the series.

I typically focus on lenses built designed primarily for stills photography, as I am a photographer first and essentially dabble in cinematography.  Cameras are increasingly designed as hybrid devices for which video is nearly as important as photos.  Cine lenses tend to be extremely expensive, however, often costing thousands of dollars.  Companies like 7Artisans have a chance to fill a gap for either amateurs or lower-budget professionals who cannot afford to spend tens of thousands on their equipment.   The Spectrum lenses effectively fill that gap with lenses that range from $379 to $459 USD – this 50mm lens being the bottom end of the lineup.

This will certainly be an interesting option for those on a tight budget, but is the lens worth using?  Find out the full picture in my video review below or by reading the text review that follows.



Follow Me @ YouTube | Patreon |  Instagram | Facebook | DA Merchandise | Flickr | 500px

Thanks to 7Artisans for sending me a review sample of the lens. As always, this is a completely independent review. *The tests and most of the photos that I share as a part of my review cycle have been done with the Sony a7IV along with the Sony Alpha 1 which will serve as my benchmark camera for the foreseeable future (my review here).

7Artisans Spectrum 50 Build and Handling

Cine lenses have different priorities than stills lenses, and one of the main ones is uniformity.  They are designed to be “geared” or used with focus follow equipment, and that equipment has to attach to the focus and aperture rings.  That means that A) those rings need to have a specific design where the teeth of the gearing equipment will line up with the ridges in the rings and B) they need to have a uniform diameter and distance between them so that you can switch lenses without having to change all the settings on your equipment.  As you can see from this promotional photo, all three of the Spectrum lenses are designed to be precisely “swappable”.

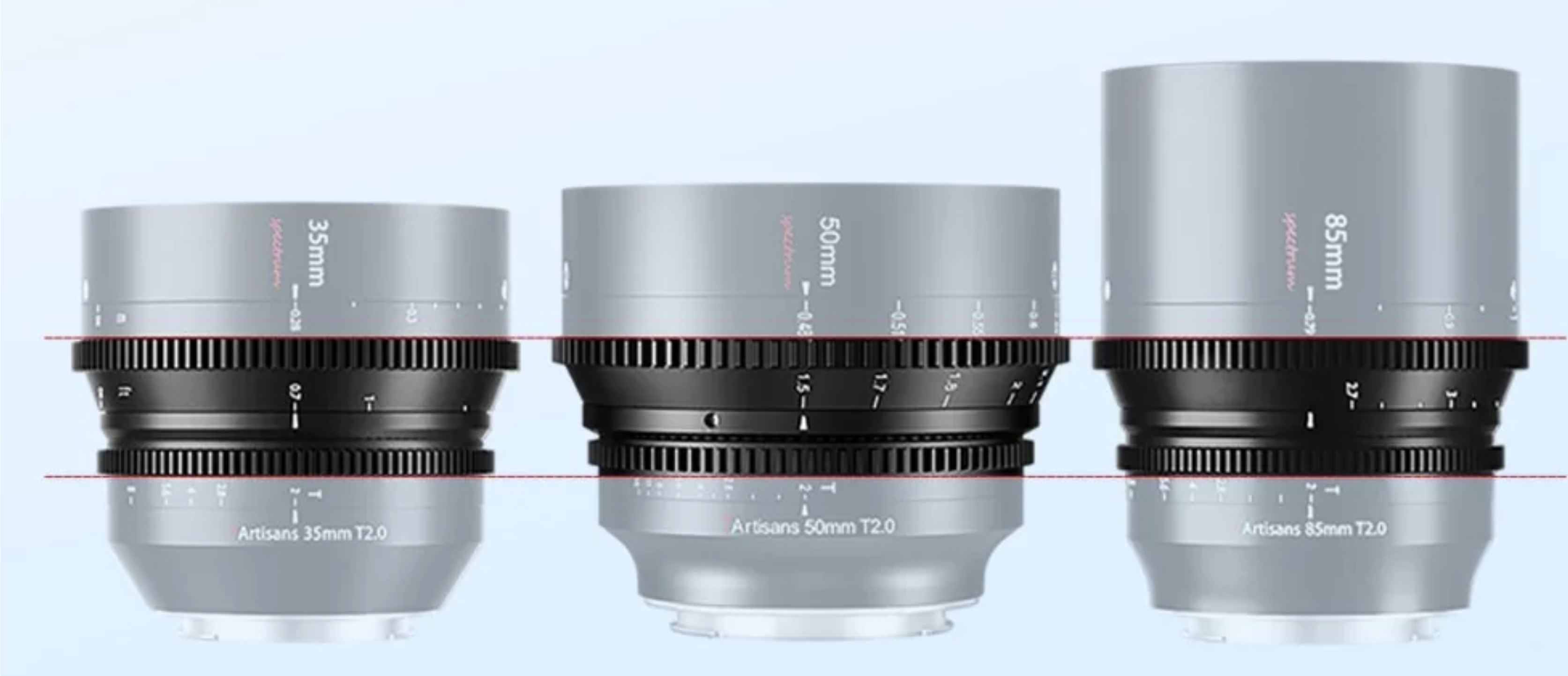

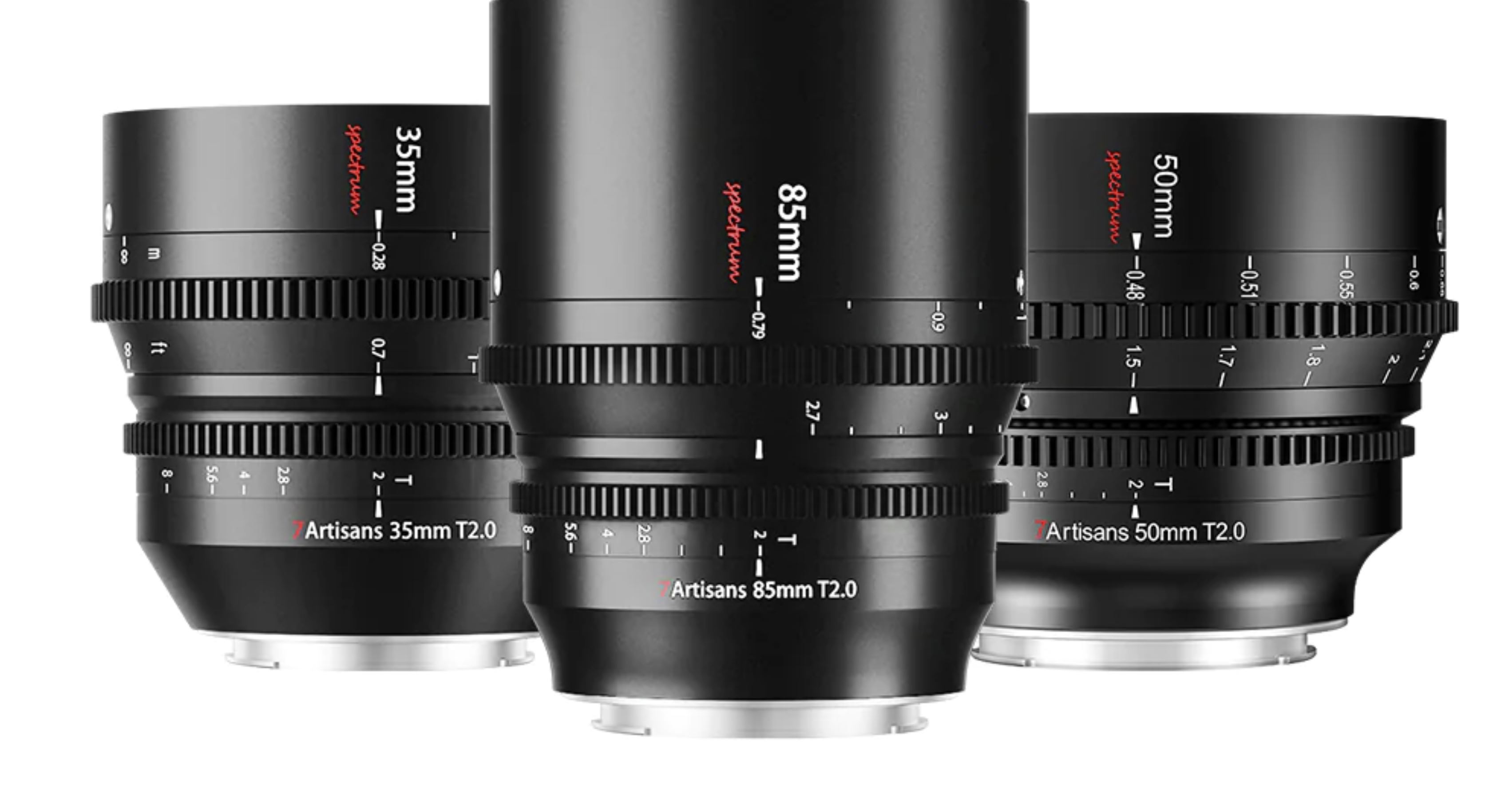

All three lenses are precisely 89.6mm in diameter, though the length of the lenses vary.  Despite this, they all have an identical distance between the focus and aperture rings to enable quick swapping of lenses when using a gearing system.  The Spectrum 50 we are testing here is 102mm in length and weighs in at 793g.  You’ll note the weight is fairly heavy due to the lens having a very high grade of construction where everything is metal and glass.  All three lenses have a front filter size of 82mm, which is large but standard.  There are plenty of filter options in this size, and cinematographers will most commonly use variable ND filters to help control shutter speed.

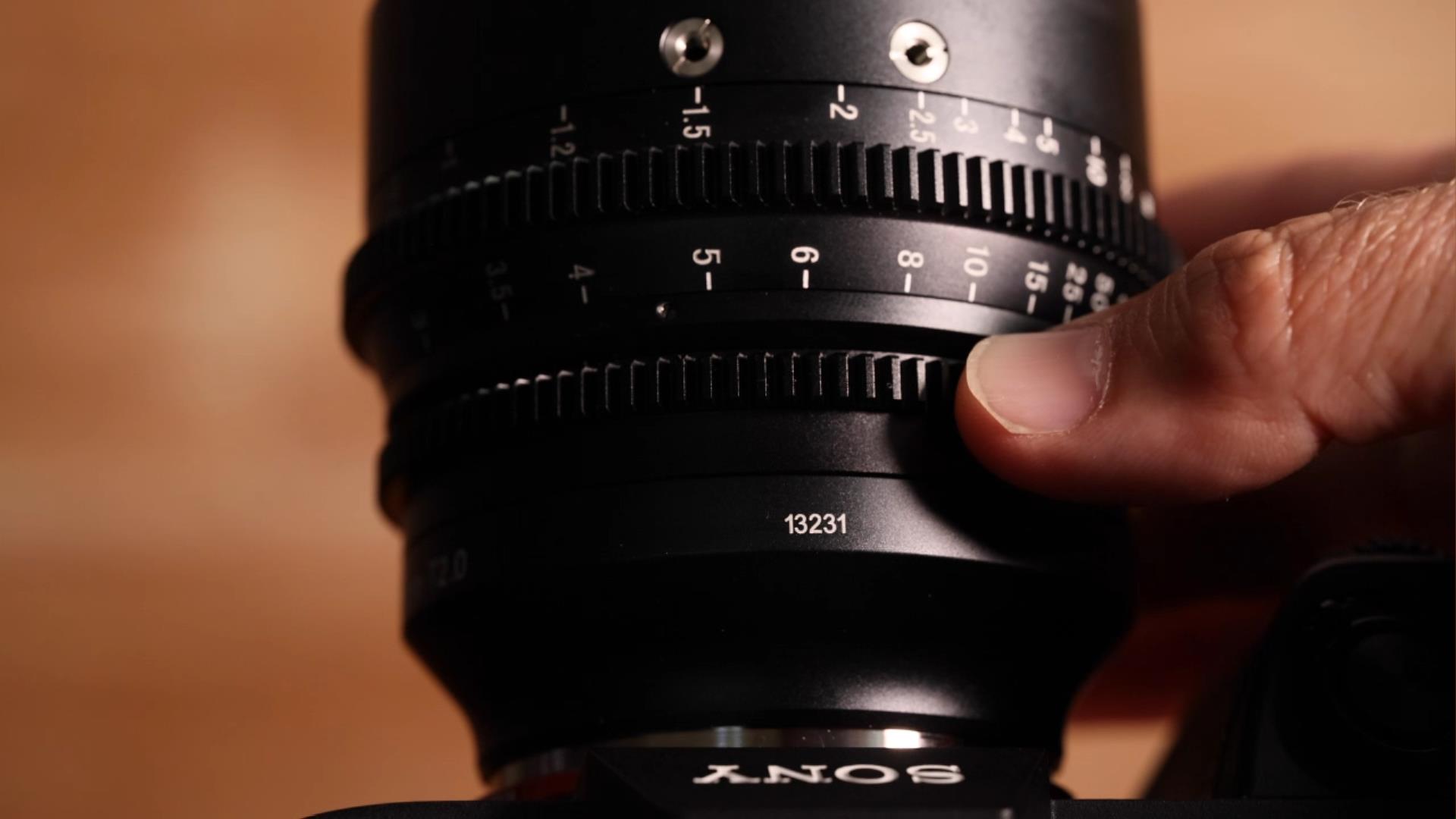

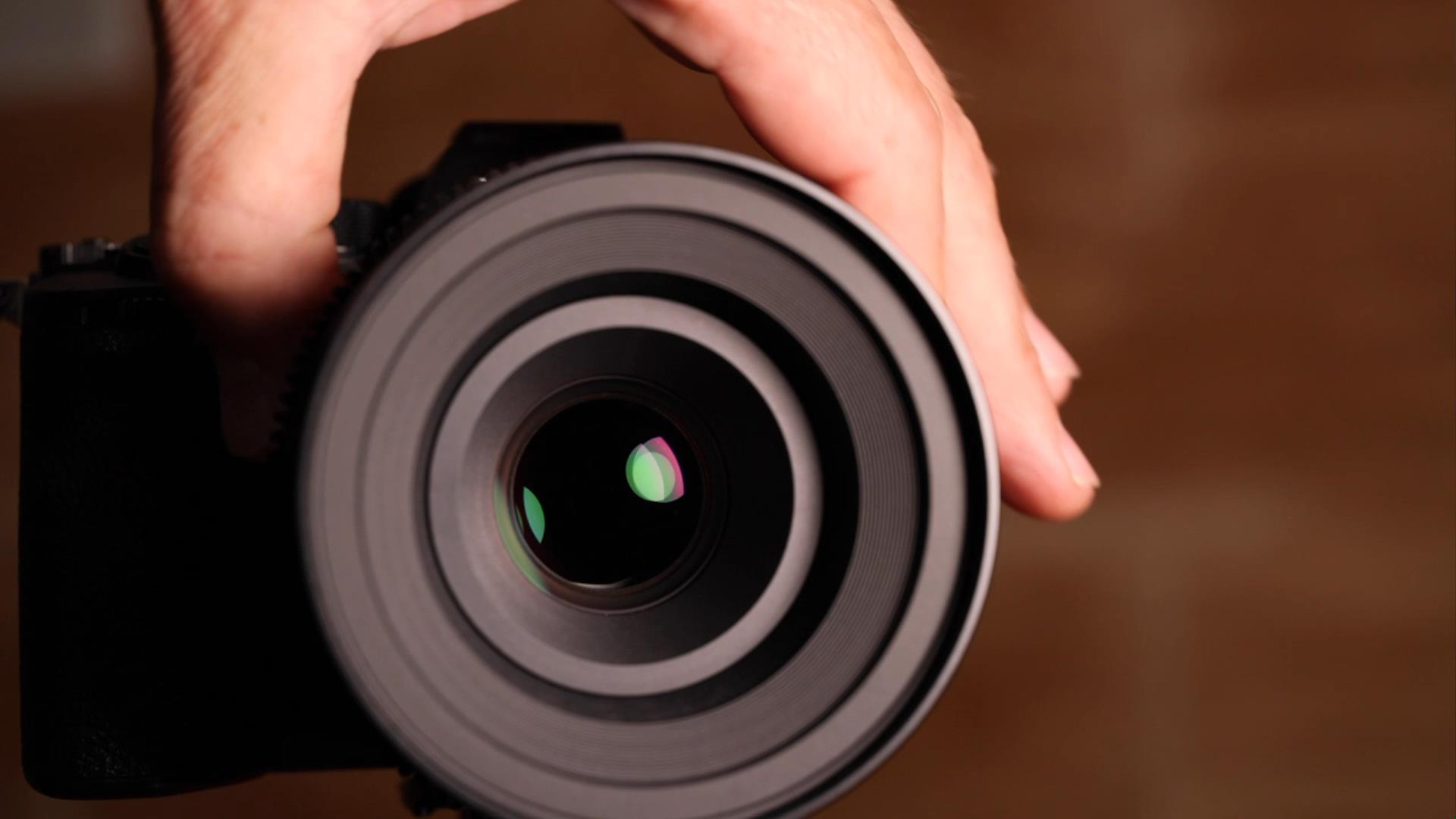

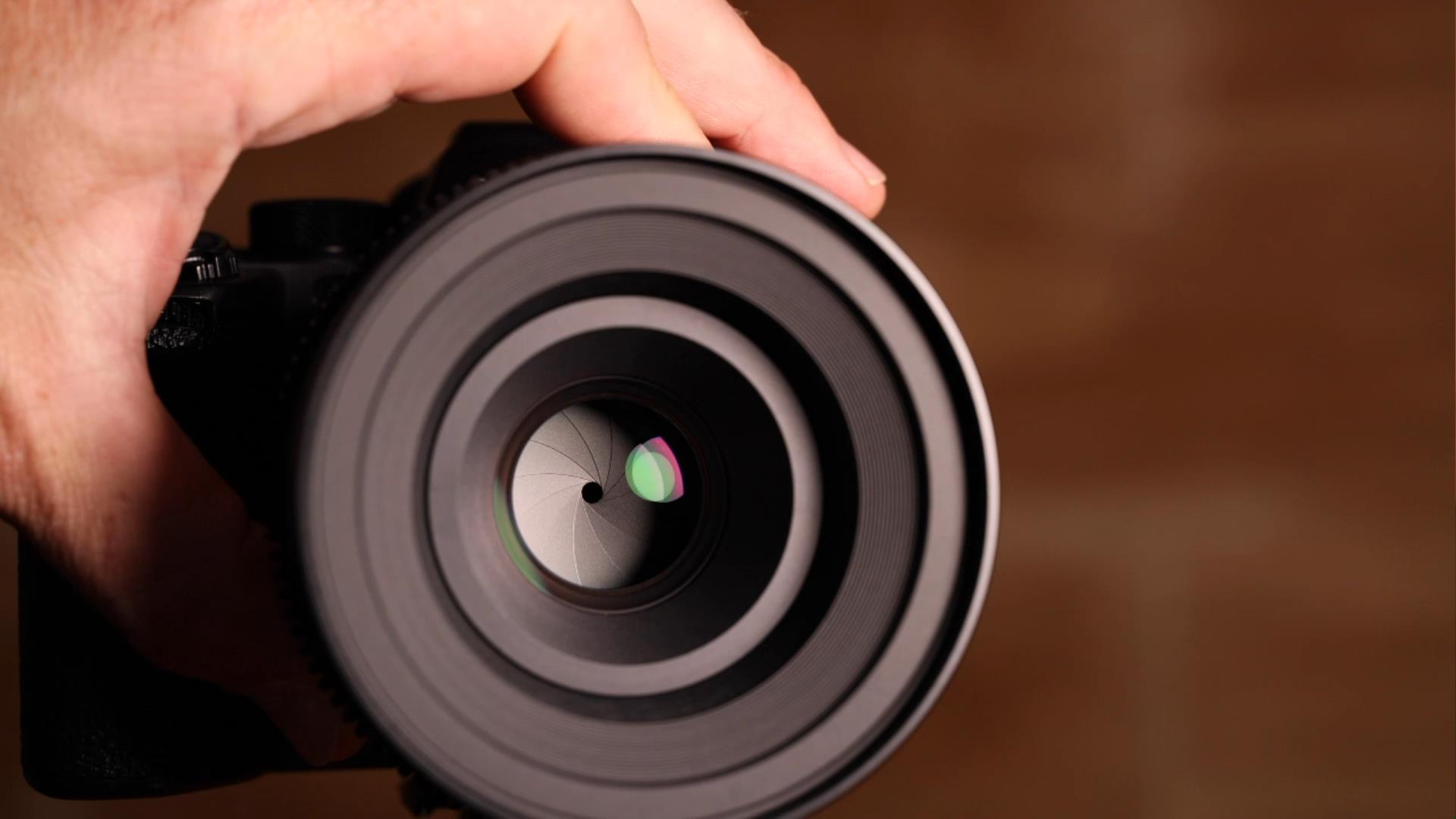

There are 12 aperture blades in the iris of the Spectrum 50, which makes for a very circular shape even when the aperture is stopped down.  The aperture range is T2-T16 and is of the “declicked” variety so that you can do aperture racking.

Cine lenses are not measured by the size of their physical aperture (reported in F-stops) but rather by their light transmission (measured in T-stops).  Typically the T-stop value is lower than the physical aperture size due to some loss of light through the glass elements in the lens.  Often an F1.4 lens will have a T-stop value of T1.5 or T1.6, though some lenses with poorer light transmission will have even a larger variation between the two measurements.  It is very rare that a lens has an identical F-stop and T-stop value.  These being cine lenses, the maximum F-stop is not mentioned, though I suspect that it would probably be somewhere around F1.8.  The Spectrum 50 is fairly bright, and can deliver nicely shallow depth of field shots.

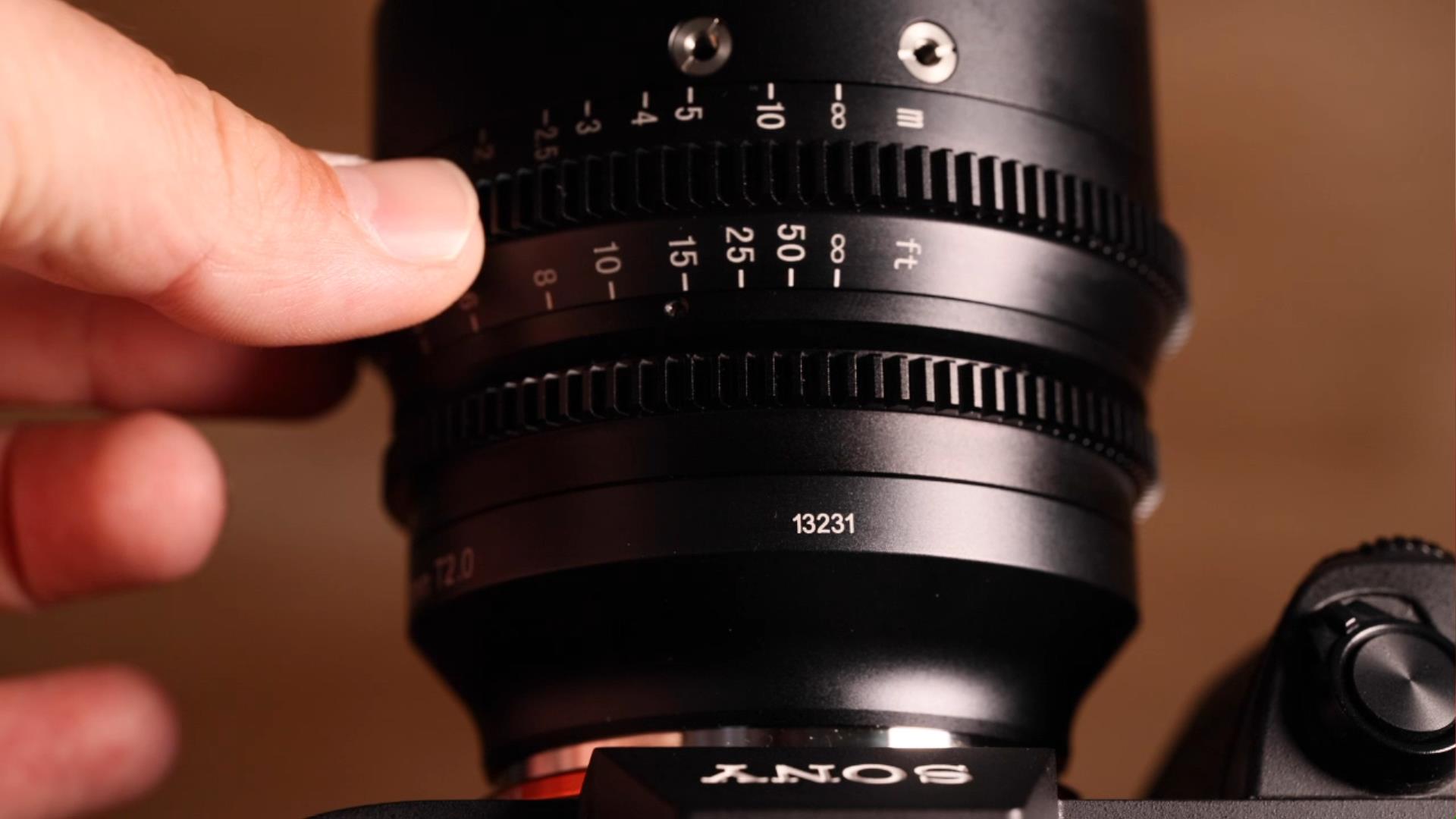

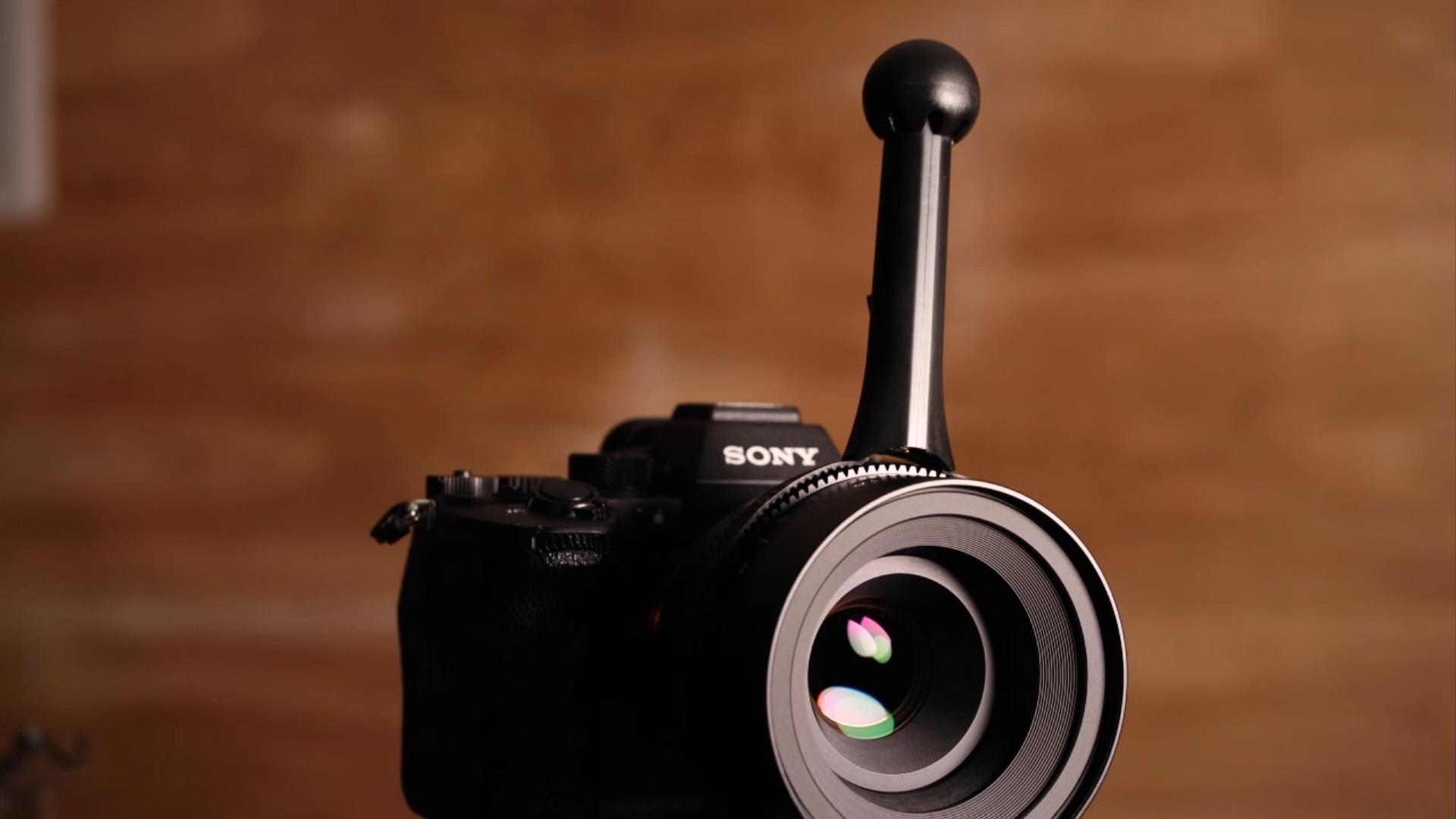

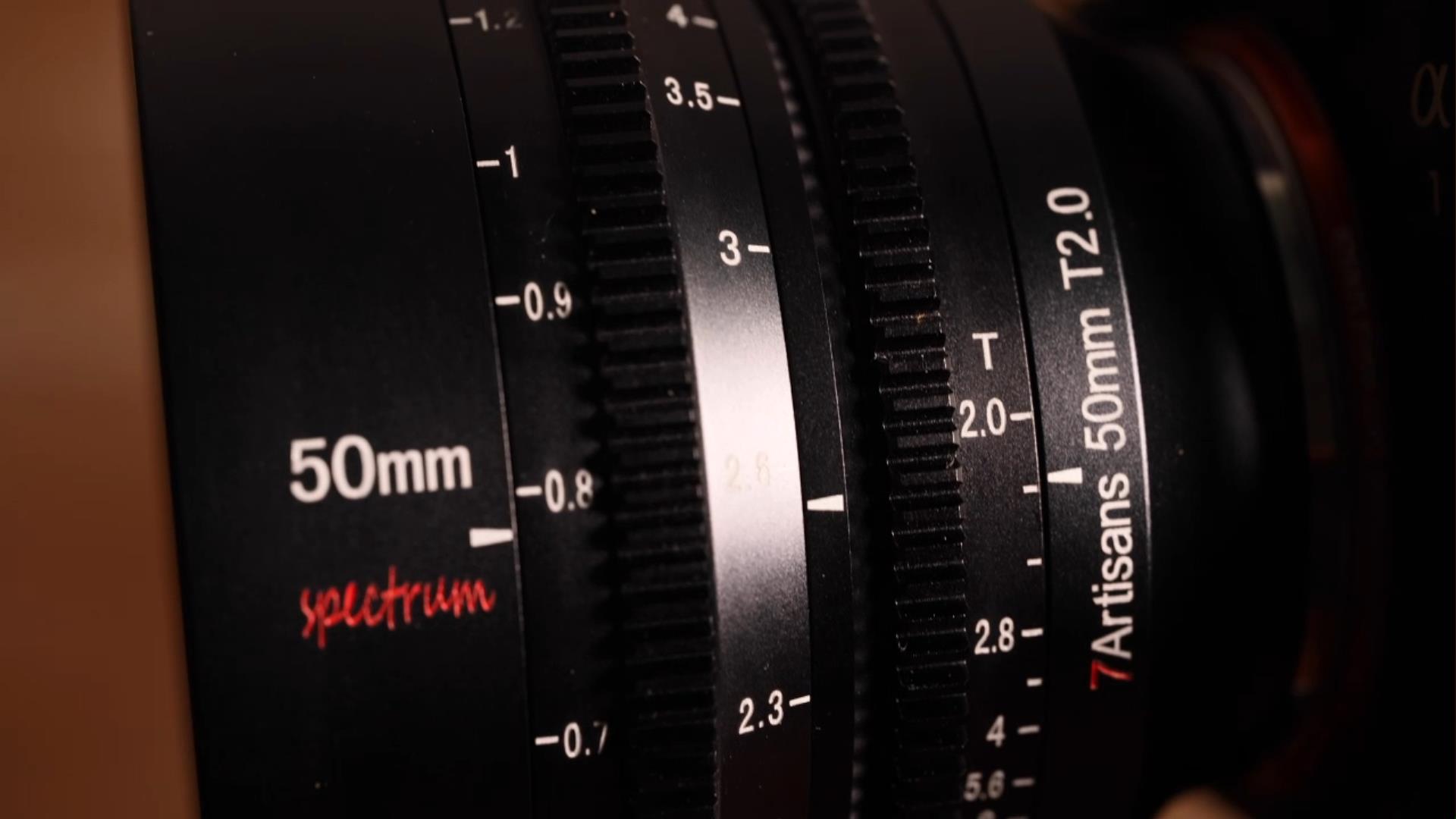

Mechanically the two most important components on a cine lens are the focus ring and the aperture ring.  Most cine lenses are manual focus in order to give the cinematographer full control over what is in focus and how quickly focus transitions happen.  The focus throw here is very long (270°) to allow for precision, but it does mean that making major “run and gun” focus changes manually could be tough.  Gearing is going to work best, though I get better handheld results by using something like this “FocusShifter” that I’ve used for years to allow me to rotate the ring without the limitations of my wrist’s rotations.

Both the aperture ring and manual focus ring move flawlessly.  Perfect damping, perfect smoothness.  The rings are a joy to use, and, as noted already, they are deeply ribbed to accept gearing.  Focus throws are easy to control and there is little to no focus breathing.

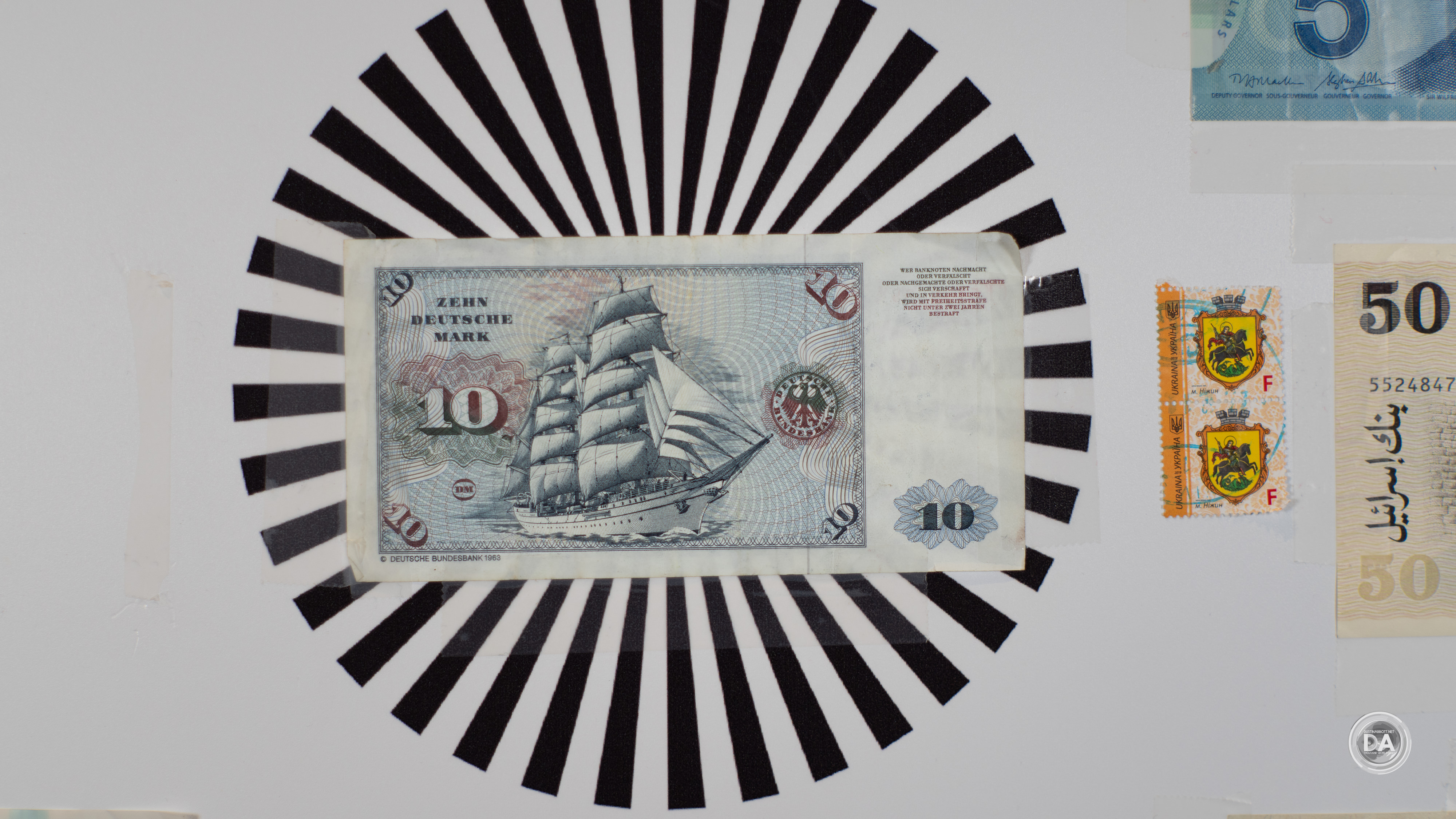

The minimum focus distance of the Spectrum 50 is 48cm, so the resulting magnification level isn’t exceptional.  On a positive note, however, the plane of focus is nice and flat and detail is quite good.  Here’s a look at what MFD looks like:

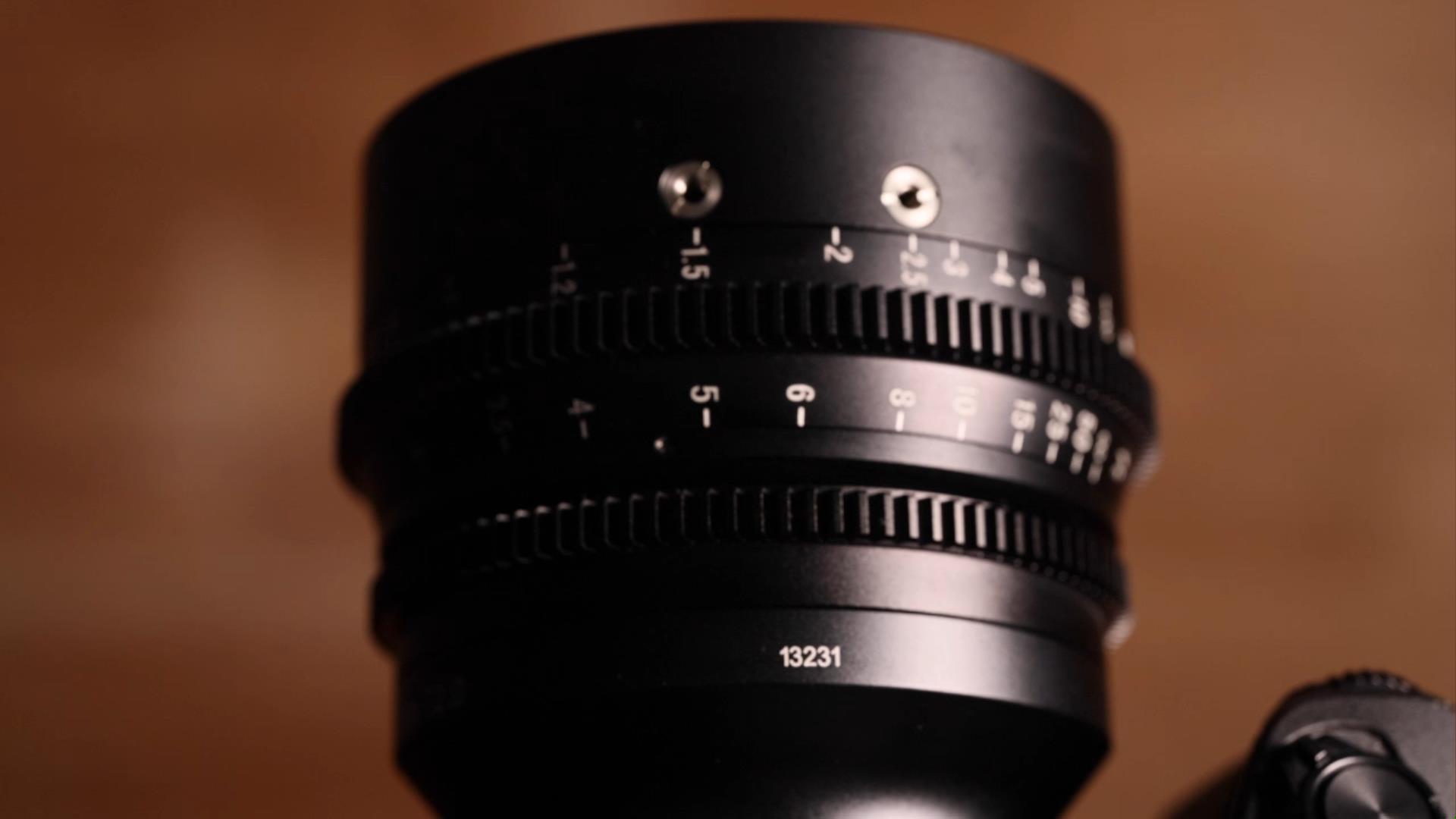

There are a variety of locations on the lens where a threaded hole awaits the use of included screws to use in conjunction with a stabilizer.  My 7Artisans rep told me that these are used infrequently.

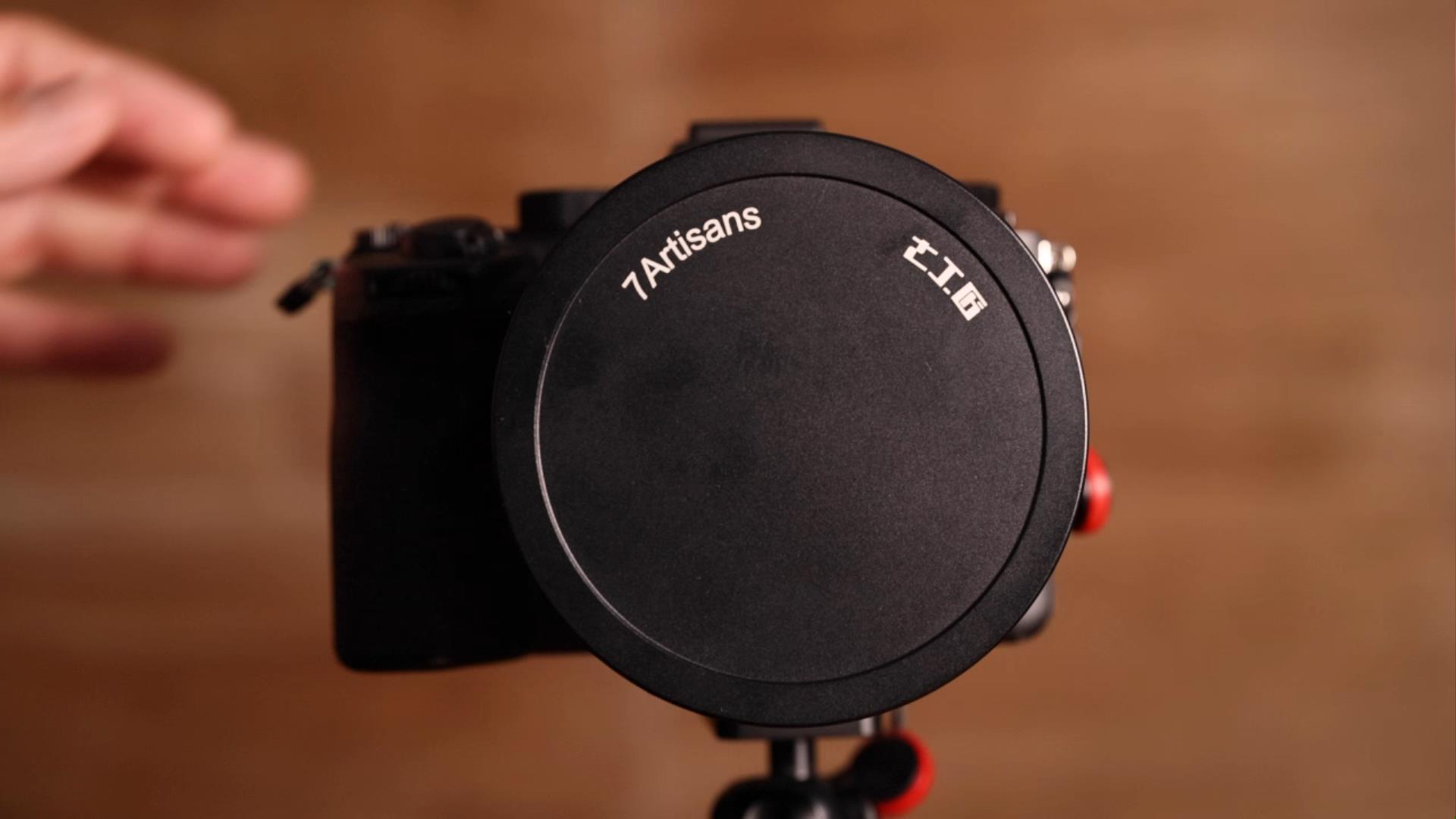

The front lens cap slips over the front assembly of the lens and isn’t too deep (fortunately), so it isn’t difficult to store.

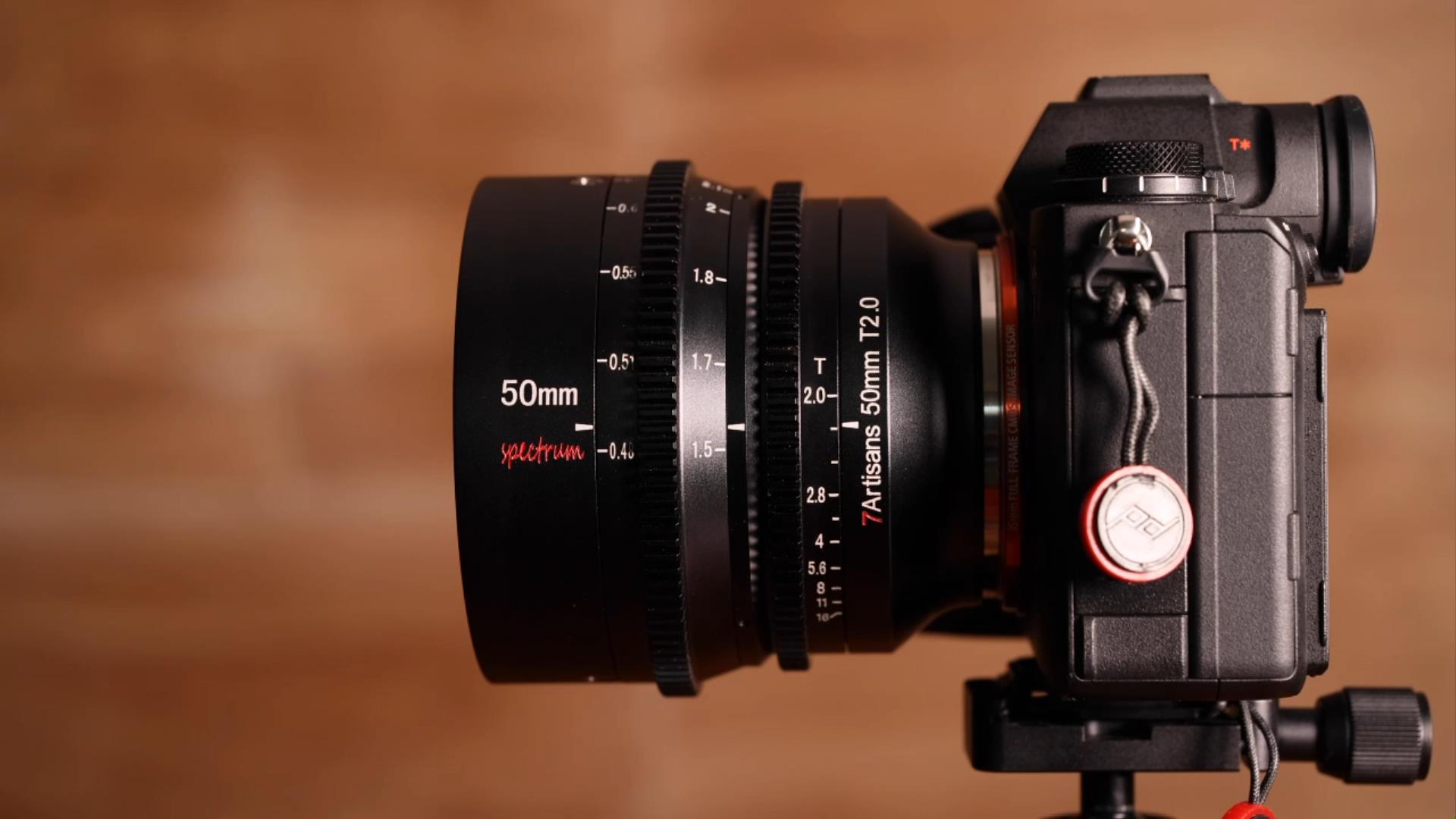

There are no electronics in the lens and no weather sealing, though frankly you’re already getting a LOT of lens for this price ($380 USD).  Overall I’m quite impressed with the build quality – it is high quality metals and feels very pro-grade, which is surprising considering the price point.  I’ll also note that these are very attractive lenses.  They look expensive…even if they aren’t.

7Artisans Spectrum 50 Image Quality

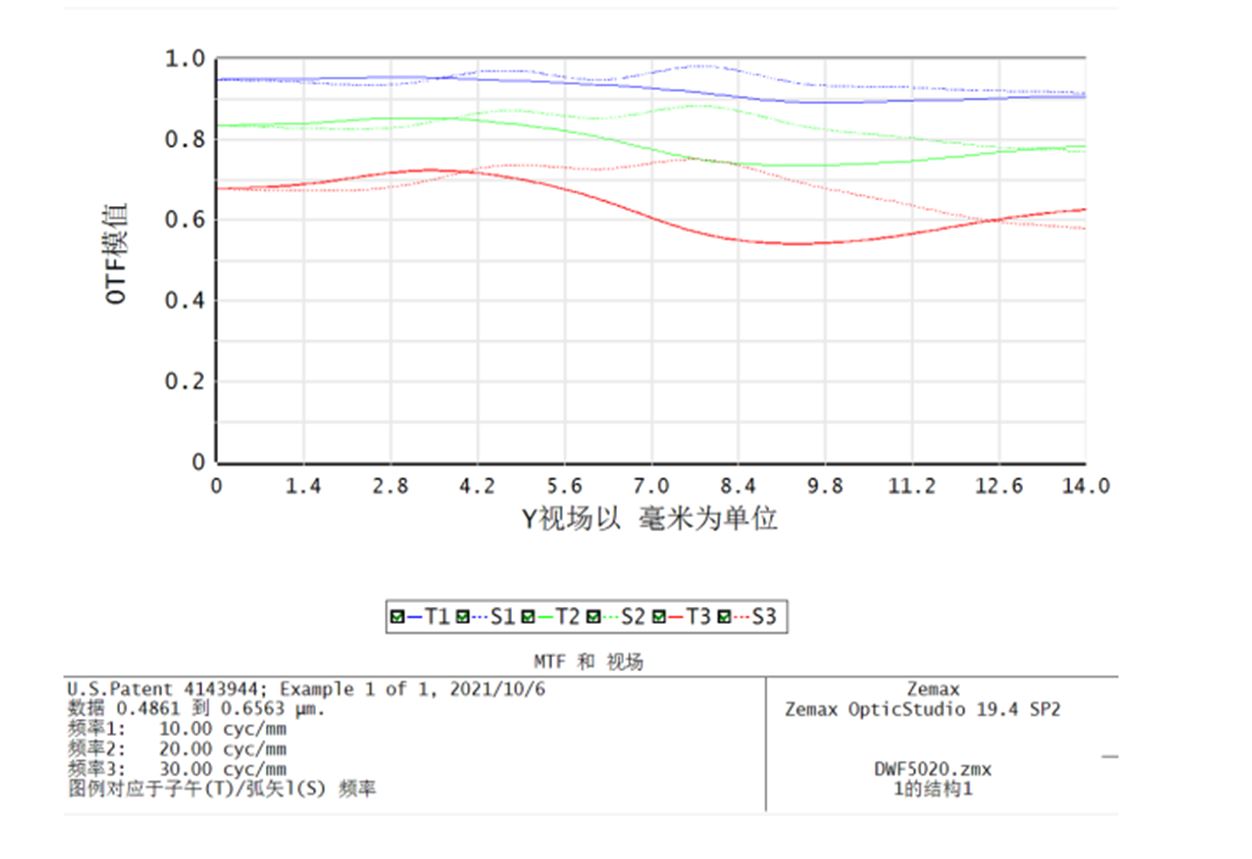

So how about the performance?   The Spectrum 50 has the least complex optical formula with just 6 elements in 5 groups…but then again, the excellent Zeiss Loxia 50mm F2 has 6 elements in 4 groups!  Sometimes simple is better, and I definitely think this lens is a cut above some other 7Artisans lenses that I’ve tested.  The MTF charts at T2.0 show a very even optical performance with a center that is sharp (but not exceptionally sharp), a bit of a rise in the mid-frame, a little dip about 2/3rds of the way out, but with another minor rebound at the very edges of the frame.

You can find more details in my video review, as my review is more focused on video performance than stills performance, but I will explore a bit of the optical performance briefly here.

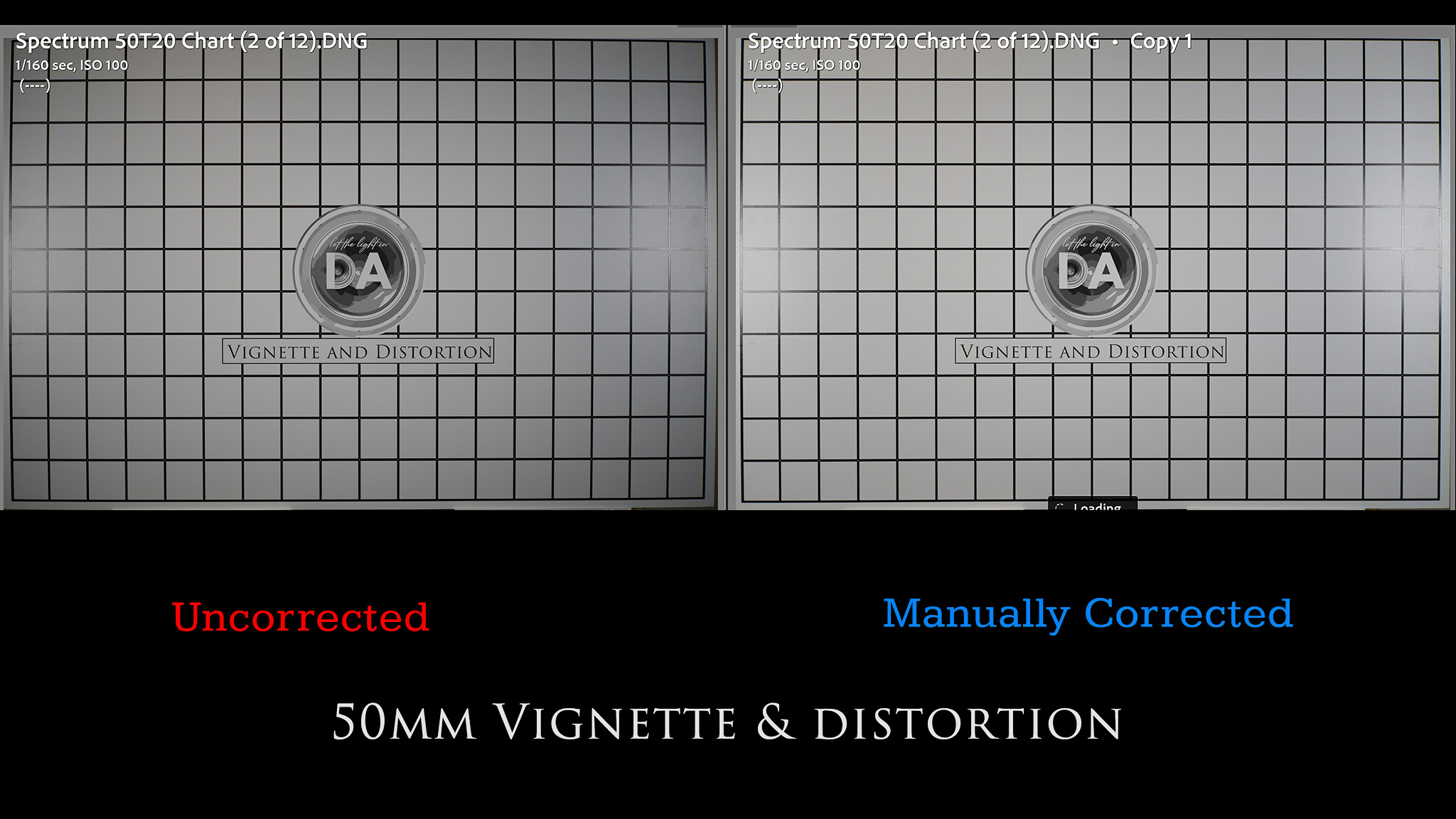

7Artisans has worked to control distortion and vignette reasonably well here, with some very, very minor barrel distortion (+3 to correct) and a moderate amount of vignette (+49 to correct, or about two stops).

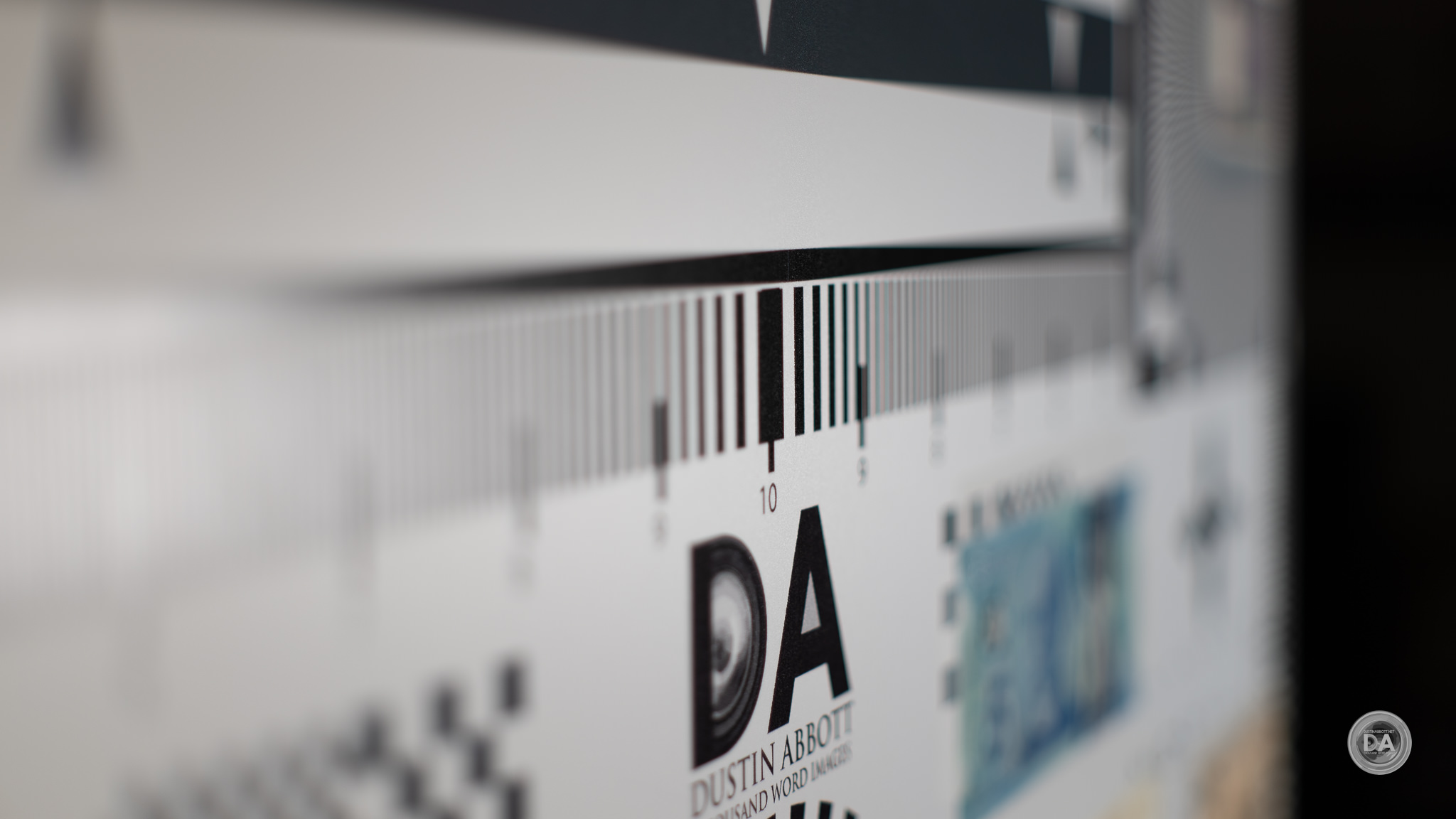

Longitudinal chromatic aberrations (LoCA) typically show up as purple/magenta fringing before the plane of focus and blue/green fringing beyond the plane of focus due to colors not being perfectly focused together.  They typically diminish as the lens is stopped down to smaller apertures.  You can see a bit of green fringing after the plane of focus here, but nothing too ruinous.

This real world image of a saw shows little damage from chromatic aberrations.

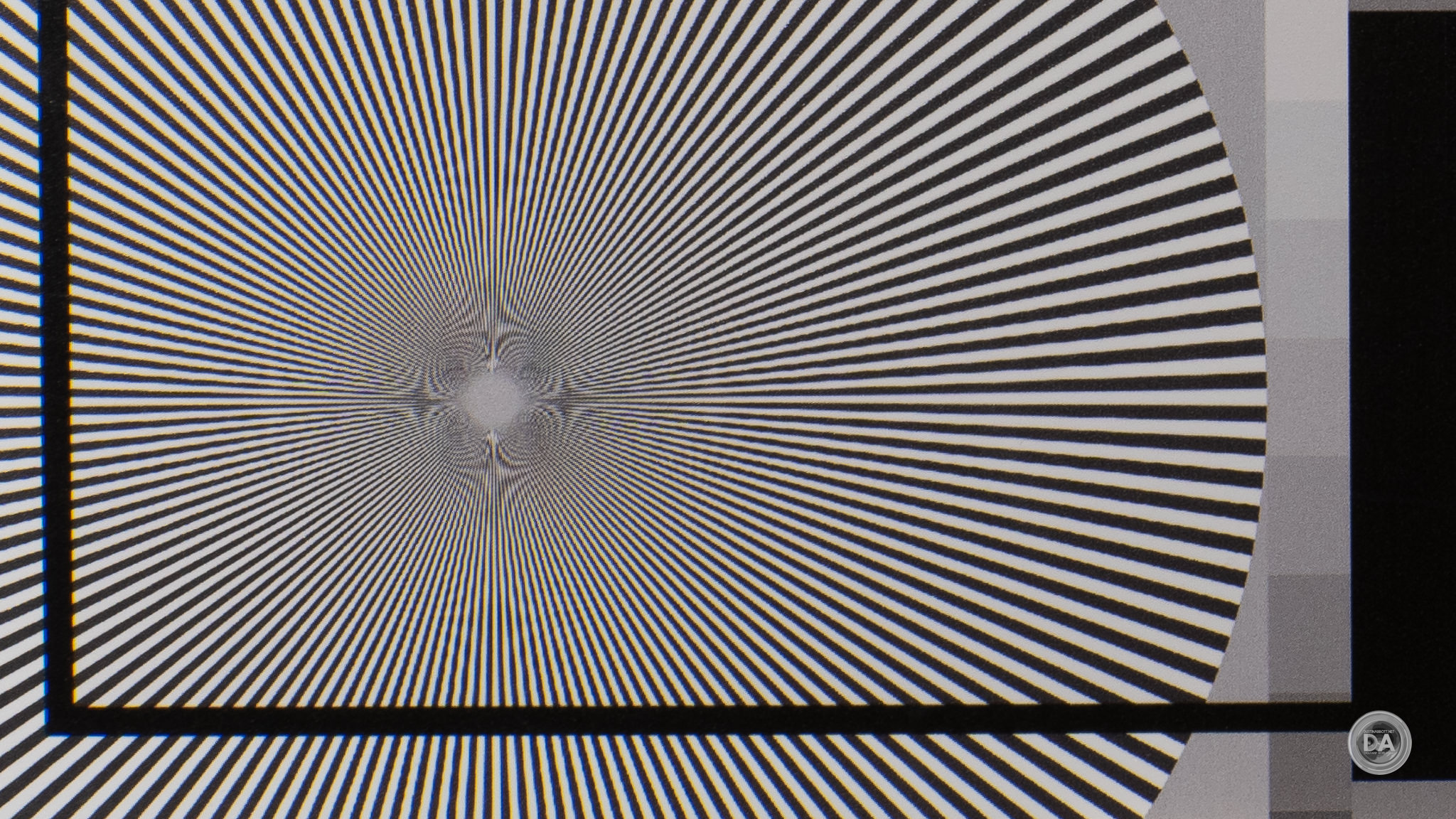

Lateral chromatic aberrations (LaCA) show up as fringing on either side of contrast areas (like tree trunks, for example) along the edges of the frame.  Unlike LoCA, they do not improve when stopping the aperture down, but are much easier to correct for (typically a one click “remove chromatic aberrations” box in editing software).  There’s a bit of fringing to be seen in this shot from my test chart, but again, nothing too destructive.

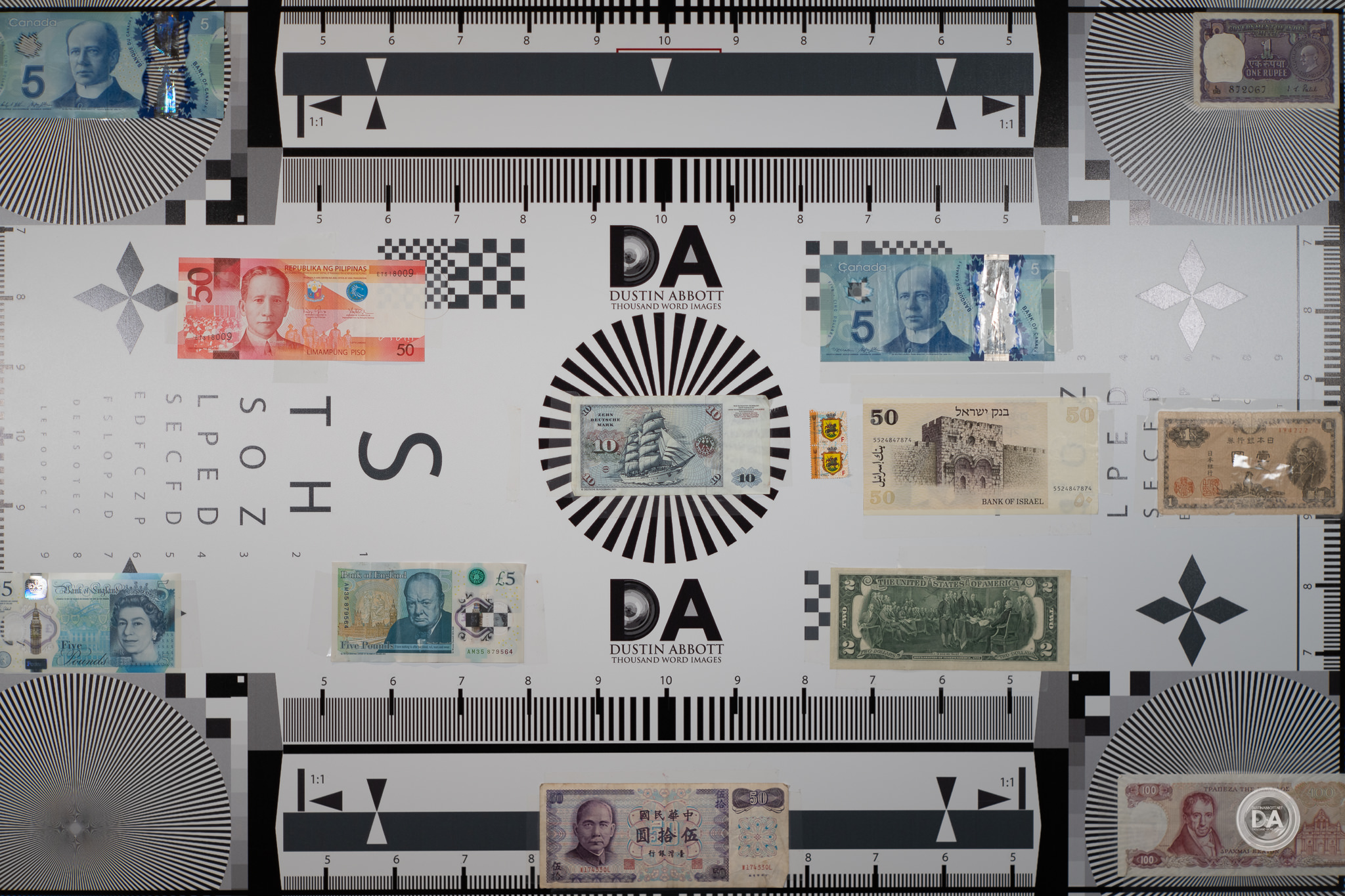

So how about sharpness?  We’ll do our formal test on the full frame (35mm) image circle that the lens is designed for, using the 50MP Sony Alpha 1 for this series of tests.  Here’s a look at the test chart:

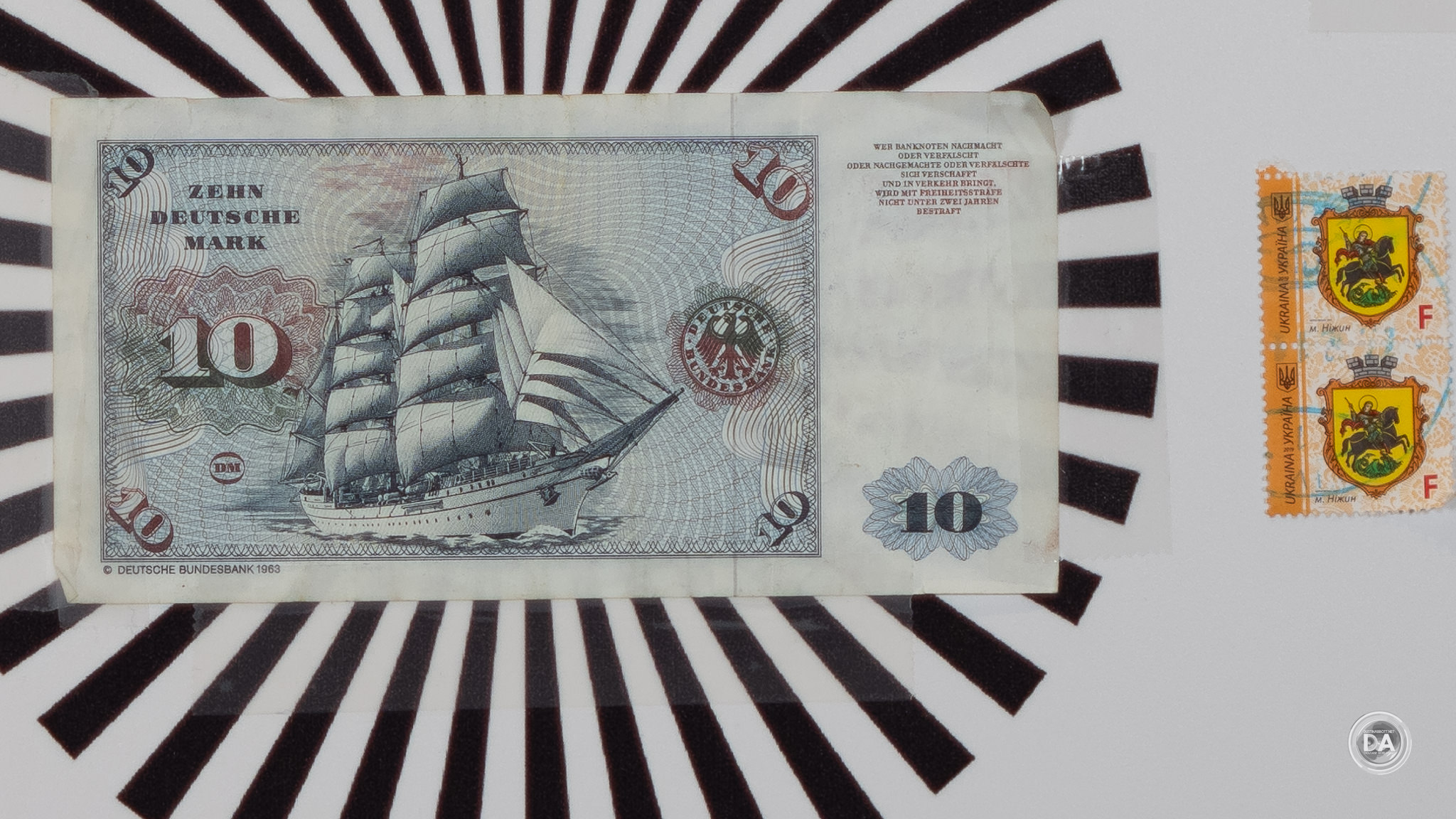

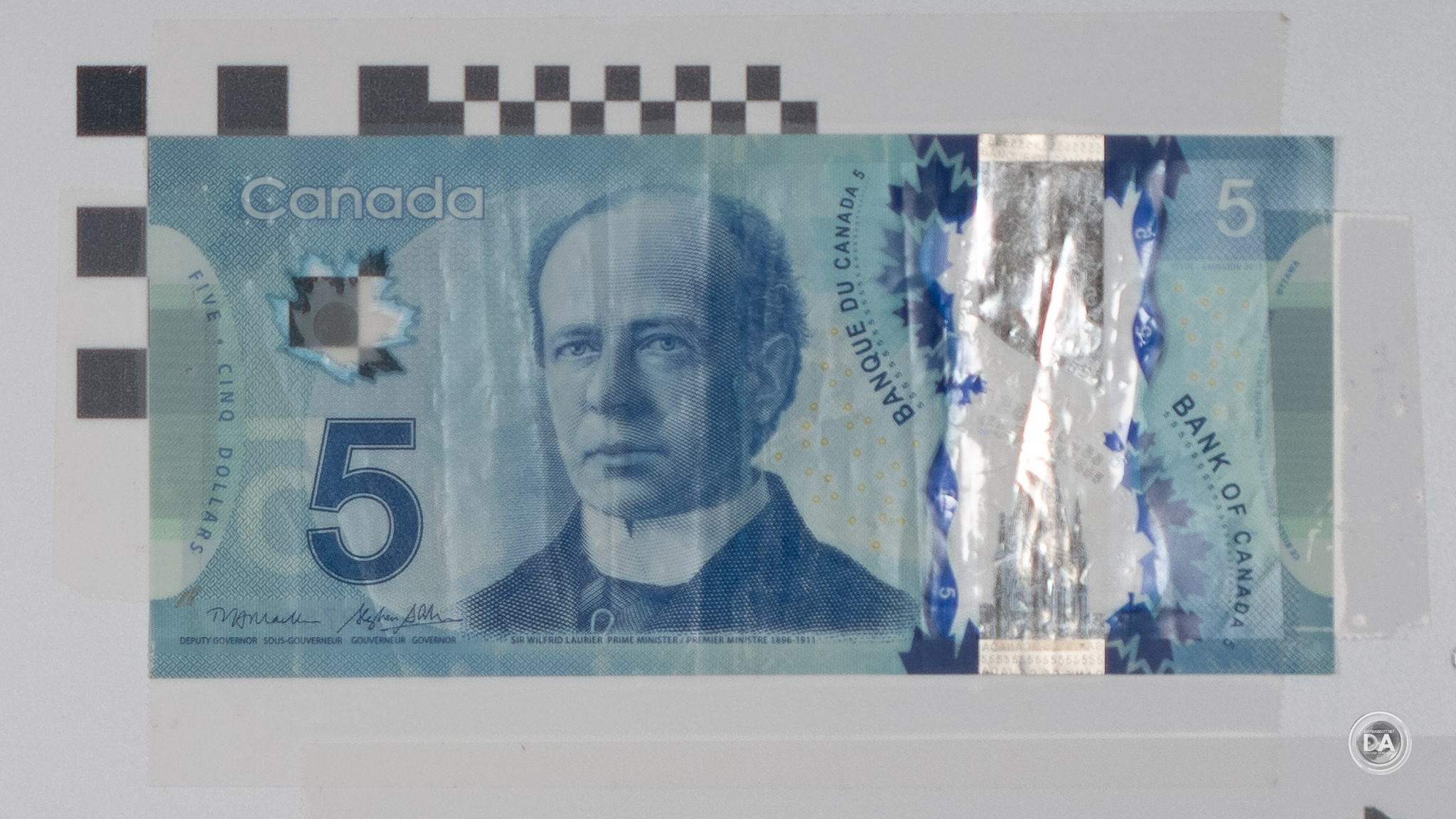

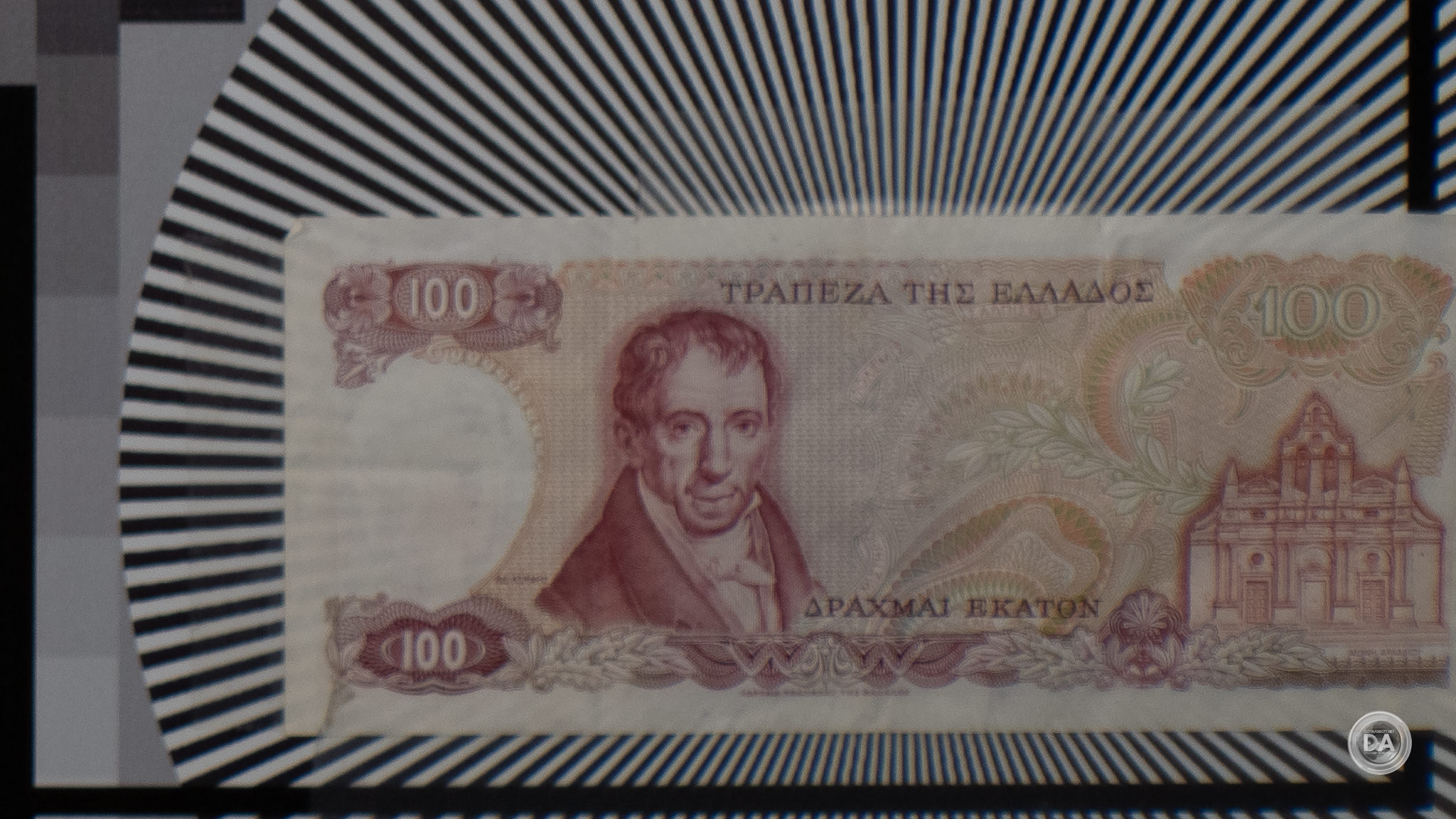

And here are the T2.0 crops at nearly 200% magnification, taken from the center, then mid-frame, and then extreme lower right corner:

I see a very good center result, still very good mid-frame result, but softer corners.

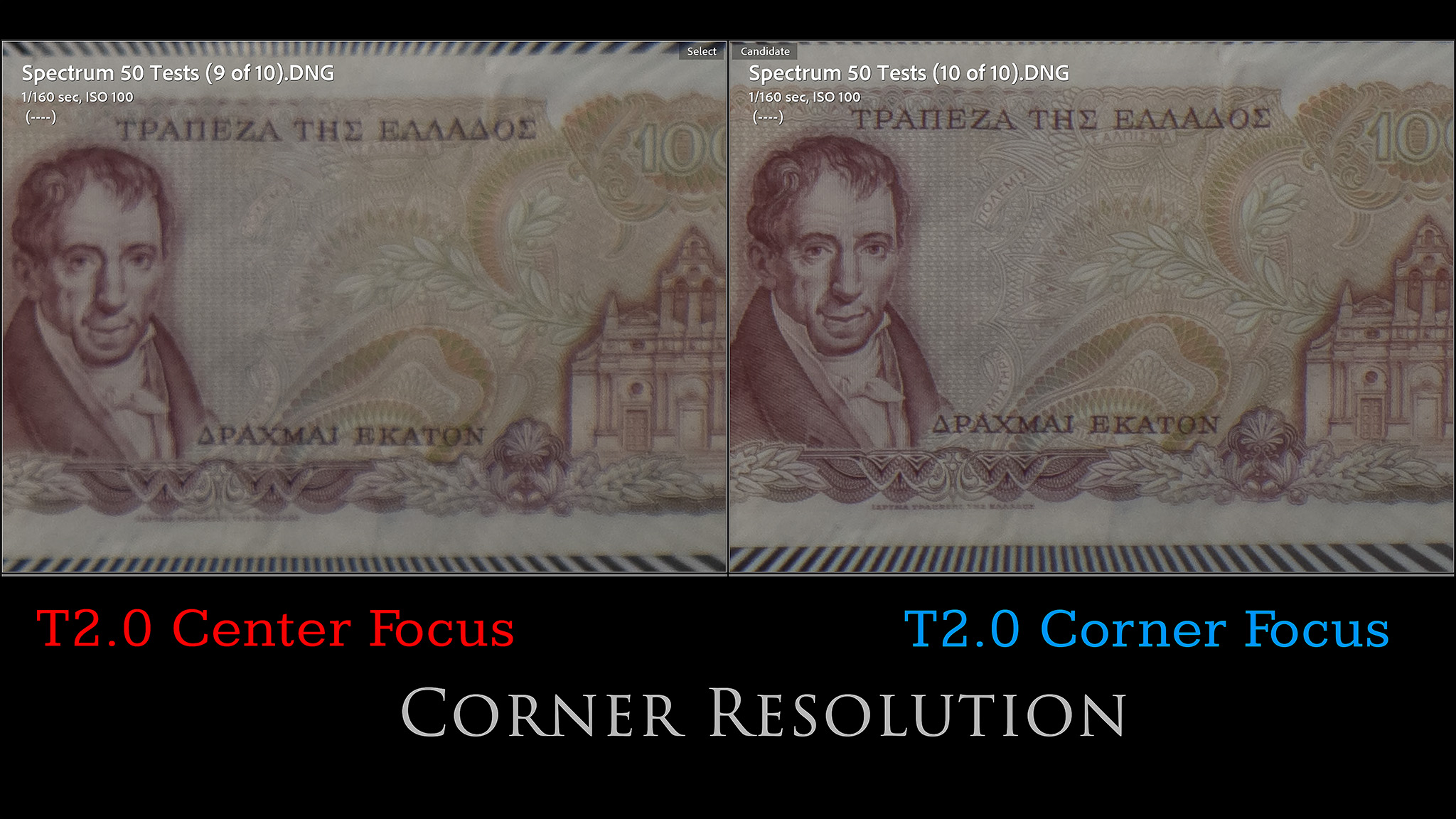

The MTF chart suggest that the corners should look better, so I tried focusing on the corner instead and saw a sharper result (though not night and day better):

My real world results focused in more typical spots look great, with good detail and contrast:

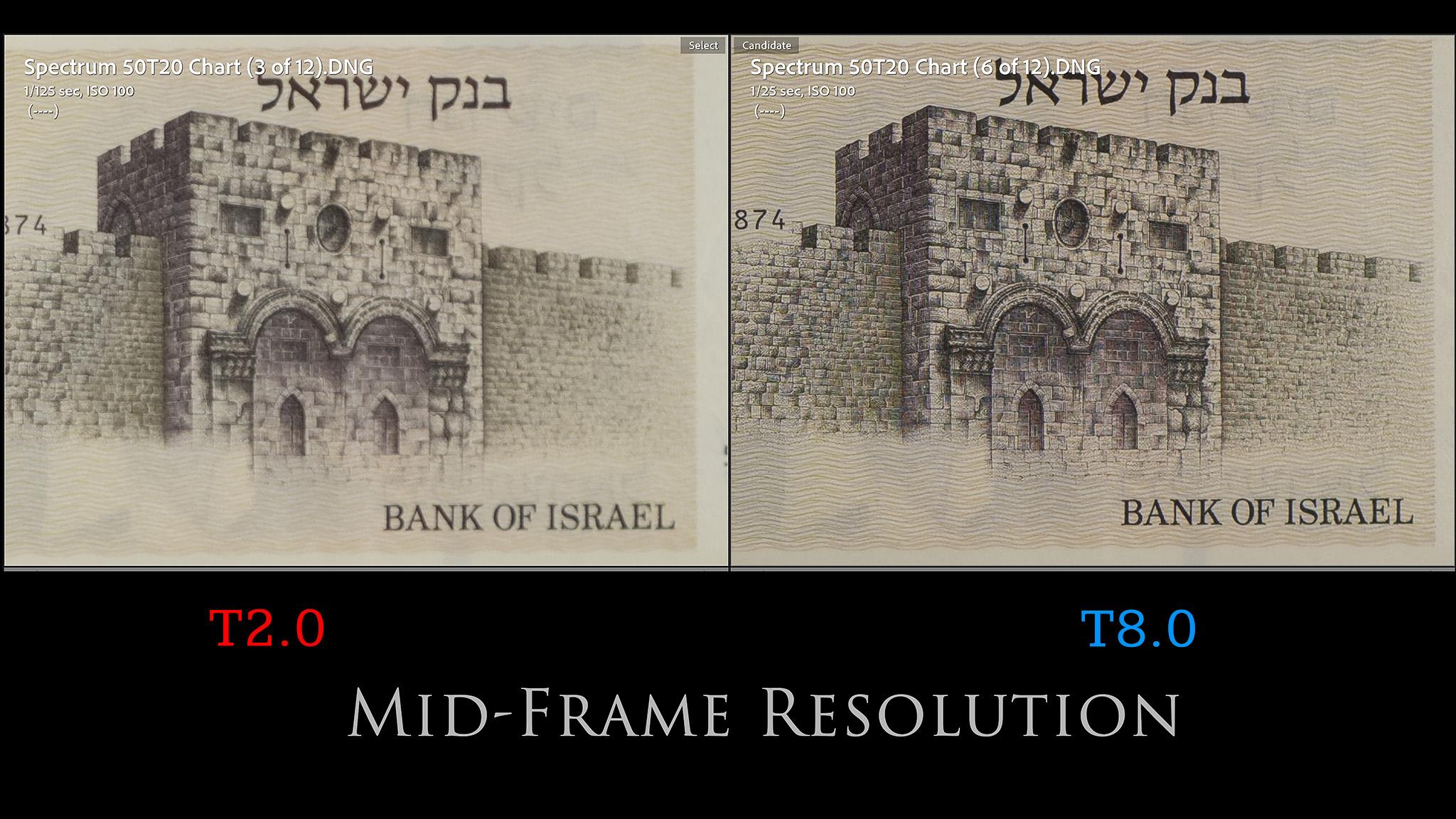

Stopping down improves the consistency of sharpness across the frame, with peak results coming somewhere near T8.0, which is very sharp across the frame.

I shot 8K footage on my Alpha 1 and was impressed with the amount of detail available (even though I have to watch in downsampled 4K due to not having an 8K display device).

The quality of the bokeh is okay but not exceptional.  It’s a little prone towards the  outlining that can produce a bit of busyness, like in this shot.

Colors seems pretty good, and I particularly like what I can get when shooting in SLOG and then grading.  Here’s a frame from a graded shot of Loki, which looks great:

The Spectrum 50 does have a bit of issues with flaring, though only in very specific spots where the sun enters the frame.  It is more a veiling issue than ghosting, however, and it does have a cinematic quality that could be creatively employed.  Here’s a screenshot from such a frame:

In general, however, I do like the look of footage from the Spectrum 50 and think that is provides very good value for a cine lens at this price point.

Conclusion

In conclusion, I’m fairly impressed with the 7Artisans Spectrum 50mm T2.0 cine lens.  Everything from the packaging to the build quality to even the image quality suggests a more expensive lens than what the $379 USD price tag projects.  The lens is functionally excellent, and 7Artisans has done their homework in designing a series of lenses that can be quickly swapped by cinematographers.

The image quality is quite good even if the bokeh quality is not top-tier.  I took this shot in a steamy sauna, and the low contrast induced by the steam makes for softer bokeh.

Those that are interested in filmmaking or cinema lenses but have a tight budget will surely find the Spectrum series from 7Artisans of interest if this Spectrum 50 is any indication.  It is well made, nicely performing, and, perhaps most importantly, affordable.



Pros:

• Very nice build quality
• Shared design elements for hot swapping
• Well damped focus ring
• Smooth aperture ring
• Excellent price
• Little focus breathing
• Good resolution and contrast over most of the frame

Cons:

• Corners lag a bit behind the center unless focused on
• Bokeh can be a bit busy
• No electronics
