Fujifilm scored a huge hit with their X-100VI and its retro-cool design and fixed lens. But there are plenty of people who like the vibe but want the ability to use more than one lens. Enter the new Fujifilm X-M5, which has a similar cool vibe but uses Fuji’s ubiquitous X-mount that can host probably more than a hundred different lenses from a variety of brands at this point. It utilizes Fuji’s 26MP X-Trans sensors, has their most recent focus algorithms, and also boasts a deeper video component than many competitors. So is this new Fujifilm X-M5 worth considering over the competition? Find out by watching my video review below…or keep reading.

Follow Me @ YouTube | Patreon |  Instagram | Facebook | DA Merchandise | Flickr | 500px | X

Thanks to Fujifilm Canada for sending me a review loaner of this camera. As always, this is a completely independent review, and the thoughts and opinions expressed here are my own.

__________________________________________________________________________________________________

So what are the major competitors to this camera? The closest competitor that springs to mind is the similarly vlog-focused Sony ZV-E10II that I reviewed in 2024. That camera costs more (+ $200), has slightly lower video specs, but also has a more robust autofocus system.

There’s also the Canon EOS R10, Nikon Z50II, and even the long in the tooth Sony a6400 might be worth considering, as while it is five years old now, its AF system still beats what Fuji can deliver. Autofocus is improved on the X-M5 over previous models, but unfortunately this does remain the Achilles heel for Fuji products. But Fuji brings its own strengths, including more stylish design, its famous film simulations, and up to 6K30 video recording specs.

If you are looking for a stylish vlogging camera, want to travel light, or generally want to keep things as compact as possible without compromising on imaging, the X-M5 might just be the camera for you. And, at $799 USD for the camera alone or just $899 for a kit including the XC 15-45mm f/3.5-5.6 Lens, the Fujifilm X-M5 offers a very compelling value.

I’ve got a few complaints that I’ll detail as well, but there’s a lot to praise here…so let’s dive in.

Spec List

• 26.1MP APS-C X-Trans 4 CMOS Sensor
• Latest AI-Assisted Processing Algorithms
• 6.2K/29.97 fps Video, 10-Bit Internal
• 425-Point AF, AI-Based Subject Detection
• Up to 30 fps JPEG Shooting w/ 1.25x Crop
• Compatible with X-Series Lenses
• 3.0″ 1.04m-Dot Tilting Touchscreen LCD
• SD/SDHC/SDXC Card Slot
• Wi-Fi and Bluetooth Wireless Connections
• *XC 15-45mm f/3.5-5.6 OIS PZ Lens (if purchased in kit)

Some of the biggest omissions to the feature list include a viewfinder of any kind along with having no camera-based stabilization.

Build and Features

The X-M5 does have some visual connections to the X100VI, particularly in the silver edition that I’ve reviewed here (a standard black finish is also available). It shares a similar topline, the tiny bulge of the grip, and a somewhat similar top control scheme.

Fuji has forged a reputation for retaining a more analog control scheme that relies more on dials that touchscreens (a good thing, as Fuji’s touchscreens remain unimproved in the more than six years I’ve been reviewing their products). That’s less true here, however, and the main concession to that aesthetic is the film simulation dial on the left side of the topline of the camera.

This allows you quick access to Fuji’s film simulations, though, frankly, this is going to appeal more to people who shoot JPEGs than those who shoot RAWs, as shooting with a preselected film simulation doesn’t affect a RAW image on import. Case in point is that I turned the dial to PROVIA for the shot on the left and then VELVIA for the shot on the right. The JPEGs will look different, with much more saturation on the VELVIA image, but the two RAW files arrived in Lightroom looking identical:

If you are a JPEG shooter and love Fuji’s film simulation, this quick access dial is going to be great. For me (a RAW shooter), it is a waste, as I would strongly prefer an extra control dial, and thus far I haven’t found a way to assign a different function to that Film simulation dial. Also somewhat odd is the fact that the front command dial has to serve multiple functions, which are accessed by clicking the dial in (each click will cycle through the default 3 options in sequence unless customized otherwise). One of those default functions is film simulations, but this feels very redundant when there is a large dedicated dial for this function already on the top of the camera.

The X-M5 is a very slim and stylish camera, but that stylish exterior does come at the cost of ergonomic practicality. You’ll note from the comparison above that out of the competing cameras the X-M5 is by far the slimmest. It’s just 38mm (1.5″) deep, which means that the grip is nearly nonexistent. There is a very slight bulge on the right side of the camera that serves as the grip, but there’s nowhere near enough depth there to actually wrap your fingers around. This is more a camera that you pinch rather than one that settles into your grip. The minimal height of the camera also means that my pinky has no place to go and has to float underneath the camera. This is a camera that is better suited to smaller, lighter lenses, and you probably won’t want to often use the larger, heavier telephoto lenses with the camera. Even the new XF 16-55mm F2.8 II, which is considerably smaller than the first generation lens, feels a little awkward in balance.

You can see from this shot of the battery compartment that the grip above is a just a little bump. There’s very little to hang onto. I personally don’t find this camera very easy to hang onto, though your mileage may vary. The flipside of this design is that it takes the portability way up. Pair this with a pancake style lens (an X-mount version of Viltrox’s 28mm F4.5 VCM would be perfect!) and you would truly have a pocketable camera. The camera is 111.9 (W) x 66.6 (H) x 38mm (D) or 4.4 x 2.6 x 1.5″. The weight is just 355g (12.5oz) without a battery or memory card. That’s a little heavier than the Sony ZV-E10 II, and a little lighter than the Canon EOS R10.

You might also note from above that there is no room in that grip for a battery, so the battery sits laterally in the camera. The NP-W126S is a relatively small 1260mAh unit that is rated for as much as 440 frames in “Economy mode” but drops to 330 frames in normal mode. Economy mode reduces performance of both the LCD screen and the autofocus system, so that probably isn’t going to work for most people most of the time, particularly considering the LCD is the only way to compose with the X-M5. That battery charge is also only good for about 45 minutes of 6.2K or 4K60 recording. You probably want to pick up a spare battery or two.

The second disappointment is that the memory card is housed there. I hate this position as it makes it far more likely that you’ll walk away without a memory card inserted because you have to close the battery door to set the camera down (happened to me!) If you have a tripod QR plate attached you also won’t be able to open the door to get at the card without removing it first. I also couldn’t figure out a way to just attach a USB-C cable and directly transfer images to my computer. That meant that I either had to do without my Peak Design capture plate that I put on all my cameras to make them easy to attach to either straps or tripods, or I had to use a hex key to remove the plate every time I needed to access the memory card. I really, really dislike this card position, and it is made worse here because the card is located on the far right of the bay, closer to the center of the camera and the 1/4″ tripod socket.

The card slot is only UHS-1 compatible, but that seems to be enough for steady data flow for the 6K30 footage. Buffer depth (as we’ll explore later) is pretty decent as well thanks to the more reasonable 26MP (rather than 40MP) resolution of the sensor.

While the X-M5 has some of the retro aesthetic that Fuji does so well, the control scheme (outside of the film simulation dial) is pretty routine. As a personal preference, I actually like even my compact cameras to be big enough to have decent ergonomics. Controls are not bad here, but there’s a few questionable decisions in with the good. You can see from the top plate (where most of the controls are) that there is a mode dial and a rear control dial in addition to the film simulation dial. The rear control dial is a little stiff, but works well enough. What I really don’t like is the tiny, tiny Q menu button between those two dials. It is hard to access with a bare fingertip, and impossible when wearing gloves (I’m doing a winter review).

The rear buttons above the LCD screen are also very small, and those wearing gloves will also find them a little difficult.

The drive/garbage button is harder still to access due to the prominent port for the mic input. Mic ports are usually on the side. I don’t mind this position in a small camera, as it has good proximity to the hot shoe where the mic will likely be mounted, but it does make the adjacent button a little difficult to access.

This includes a headphone monitoring jack, which is important on a video-centric camera like this. A second port has a USB-C port that can be used for either data or charging the battery in camera, and a micro-HDMI port. I don’t love micro-HDMI (it feels more fragile), but obviously there isn’t room in a camera this size for a full size HDMI port.

On the positive note, there is a little navigational joystick that helps with menu navigation. On the negative side, however, there is no full menu navigation by touch, which isn’t true of most of the competing (non-Fuji) cameras. There are two other buttons below this for further control.

The limited touch capacity makes navigating Fuji’s menus a little clunkier than other cameras where you can use whatever combination of touch and/or physical control that you like. I’m mostly frustrated here because I haven’t seen any progress on this front in all the time I’ve been using Fuji. The reactiveness of what touch is there (touch to focus, navigating the Q-menu, etc…) feels imprecise and with a lower reactiveness than competing cameras.

Another disappoint regarding the screen is a fairly low resolution. This is a 3″ fully articulating screen (which I personally like!), but the resolution is just 1.04 million dots. That’s not great when the screen is your only compositional tool. There is no viewfinder. While the screen has reasonable brightness, it is definitely very hard to see in bright, sunny conditions. There were many times in those situations where I instinctively began to bring the camera up to my eye only to remember that there was no viewfinder.

Also missing is one of Fuji’s useful control points – an easy to use switch that controls the focus mode (Manual, Continuous, and Single Shot). This is more missed on Fuji than other cameras because most Fuji lenses do not have an AF | MF switch because this is usually handled by a camera-based switch.

All we have on front is the aforementioned control dial and a lens release button located on the right side of the lens mount.

The shutter is threaded in a typical Fuji fashion, and surrounding it is the ON/OFF toggle. You can choose either a mechanical style shutter with a 1/4000th shutter speed limit, or an electronic shutter that can reach a much higher 1/32,000th shutter speed. Fuji has a nice hybrid option where you can choose to use the mechanical shutter for slower shutter speeds (with all of the advantages that come with a mechanical shutter) and then automatically switch to the electronic shutter when faster shutter speeds are needed.

The X-M5 is compatible with Fuji’s FAN-001 cooling fan accessory.  It seems like most of their recent cameras with a fully articulating screen can use this. It’s an interesting (if somewhat clunky) interesting concept, as it plugs into the body in the port pictured above with the screen rotated out and actively cools the camera chassis to extend video recording time.  You aren’t going to be able to close the screen with the FAN-001 attached (for obvious reasons), but it seems like a fairly intelligent solution to a common problem for those focused on long format video capture at higher bitrates and resolution levels. I didn’t have the FAN-001 on hand, but here’s what it looked like attached to the X-S20.

The X-M5 is a very cool looking compact camera that definitely wins style points, though, as per usual, the compact nature of the camera comes with some serious ergonomic challenges.

To me, going back to my X-H2 was a treat, but I’m more of a fan of more conventional controls and chunkier camera bodies. If you want small, and compact, the X-M5 may be perfect for you.

Kit Lens

I’ll take a moment to give you a look at the potential kit lens, which is the XC 15-45mm F3.5-5.6 OIS PZ. Bought in kit, it will only set you back an additional $100, but bought separately it will cost three times as much! You’ll obviously want to make that decision before purchasing the camera!

This is a useful focal length, and I will give some credit for having a slightly brighter aperture than some competing lenses (F6.3 is pretty common on the telephoto end). The lens also provides OIS (Optical Image Stabilization), which could be important since the camera body itself has no stabilization.

I also appreciate the fact that while the lens is a retractable zoom design (the inner barrel emerges when the lens is powered on), it doesn’t require a manual twist to make the lens usable like Canon’s RF kit lenses do (a feature I hate!!)

The lens is a PZ, or Powerzoom lens, which means that the zooming mechanism is motorized. When you twist the larger of the two rings the lens will zoom either in or out depending on the direction. This allows for smoother zooming than you can accomplish with a typical twisting zoom, making it useful if you want zooming shots. In the VLOG mode you will also get on-screen zoom controls that will allow you another option for zooming.

A kit lens can be useful in a few scenarios: 1) if you are new to photography or to Fuji and don’t have any lenses. Buying a kit lens means that you can immediately start taking pictures, and at $100, the XC 15-45mm offers a low cost point of entry. 2) If you want a general purpose video zoom. The lens is lightweight, has a useful focal range, and gives you some stabilization.

But there’s a good chance you’ll quickly want an optical upgrade, particularly for stills. Kit lenses tend to be cheap for a reason, and that’s true here right down to the plastic lens mount. Sometimes video is a little less demanding for optical performance, but for stills I sometimes find the image quality rather soft.

Fortunately there are a lot of great, inexpensive options for sharper image quality (particularly if you are willing to use prime lenses, or those with a single focal length). Zoom lenses are fewer and more expensive, but I’m very fond of the Sigma 18-50mm F2.8 DN, which I reviewed here. You can see the Sigma’s sharpness advantage in the center:

…and along the edges of the frame, where it has noticeably stronger contrast.

It’s also considerably more expensive, however, so if you’re on a tight budget, the kit lens at least gives you a functional lens, and I’ve definitely seen worse kit lenses.

Vlogging Mode

One of the key features of the X-M5 that positions it to directly compete with a camera like the Sony ZV-E10 II is the dedicated vlogging mode and associated features. We’ve already noted that when you turn the mode dial to “VLOG”, completely different screen controls appear. New options include zoom control (if a powerzoom is present). When I attached the non-PZ XF 16-50mm F2.8-4.8, that option disappeared. Other new controls include record (to begin or end video record), playback, and then a menu button.

If you touch the menu option, a number of other options will arrive displayed around the edges of the screen.

It’s a little frustrating in one sense, as while the touchscreen still isn’t amazingly responsive, it does show that Fuji is capable of doing more with their touch capabilities. There are a decent amount of menu options here, and that gives you more direct access to some of these controls. It’s also worth noting that these controls can be easily accessed if you have the touchscreen facing you in “selfie mode”, which could save a bit of frustration of going back and forth.

But it isn’t just software, as the X-M5 also has hardware upgrades to the audio recording. According to Fuji, “(the) FUJIFILM X-M5 is the first X Series model to feature three built-in microphones for the highest-quality audio. Four different audio modes are available: Surround, Front Priority, Back Priority, or Front & Back Priority, giving the flexibility to get crystal-clear sound from any direction.”

If you touch the Mic option on the touchscreen, you’ll get a nicely illustrative menu that gives you the four different options for sound recording.

Because there are actually multiple mics, these options will in fact really change the way that sound is recorded by the camera. There’s a bit less of an obvious difference between the “surround sound” and “front/rear” (1st and 4th options) if there isn’t a lot of sound to the sides, but there is a very obvious difference in the sound if you are selecting either front or back modes. I tested in vlogging mode, with the camera faced towards me, and when I had the rear only mode engaged my voice was recorded at a much lower level and a different sound quality than when the front microphones were activated.

The best sound in many cases will come from using separate mics, but you definitely have more creative options here than are typical with most cameras using the built in mics.

There are a few other design elements that reflect modern content creation. There is a “Shorts” mode that allows you to record short clips (up to 60 seconds) in vertical mode…but without having to rotate the camera.

Also, in addition to being able to record high bitrates and high quality footage, you can also record at very low bitrates (as low as 8Mbps) to allow for quick sharing or transfer.

You’ll have a few other options regarding focus and the look of videos. Background defocus mode will simply choose the largest maximum aperture available on the lens you have attached so the background is blurred more, but that’s going to be limited to by your lens selection (don’t expect a strong background blur with the kit lens, for example). Portrait Enhancer will do some skin smoothing, with three levels of intensity that is user selectable. Product priority mode will set the autofocus to focus on anything that is moved towards the camera rather than staying locked on the presenter. It allows you to highlight a product or item you want the camera to focus on.

In many ways I was reminded of the ZV-E10 II, as a lot of these same features are making priority lists for these type of cameras.

Autofocus Performance

Ahhh, my least favorite section when reviewing Fuji cameras. Over the years that I’ve been reviewing Fuji I’ve seen a variety of improvements, but somehow the end result is always just falling further and further behind the competition. When I first reviewed the X-T3, I though the autofocus was fairly good (at least for stills) relative to, say, the Sony a6500 I owned at the time. But since that point Sony, Canon, and Nikon have all made great strides and have nearly perfected autofocus for stills and video, but Fuji’s AF has only made very incremental improvements. I’ve become convinced that what is needed is not the continual focus algorithm updates, or even the AI chip and tracking, but rather a more fundamental hardware improvement.

Fuji says, “FUJIFILM X-M5 features the same built-in AI-driven subject detection autofocus as FUJIFILM X100VI and X-T50 mirrorless digital cameras. Along with Fujifilm’s latest-generation image processor, this delivers incredible focus accuracy in nearly all lighting conditions, even if your subject is moving. X-Processor 5 features subject detection autofocus that is built with deep-learning AI technology. In addition to providing incredible AF tracking and detection for human faces and eyes, FUJIFILM X-M5 can also automatically detect and track a broad range of subjects, including animals, birds, cars, motorcycles, bicycles, airplanes, trains, insects, and drones.

FUJIFILM X-M5 is equipped with Fujifilm’s latest predictive algorithm, recording subjects with highly accurate AF even in scenes requiring tracking of moving objects or in low-contrast environments. It tracks a wide range of subjects, including sports and animals, and subjects in motion.“

So yes, the X-M5 receives all of Fuji’s most recent autofocus improvements, but they are almost all software rather than hardware based. The underlying hybrid Contrast/Phase Detect autofocus system that has undergirded Fuji’s cameras for the past few generations is still in place (and in need of an upgrade!), but it has been augmented in the most recent generation of cameras with Fuji’s X-Processor 5.

This adds AI based deep learning for subject detection AF to accurately track a range of subjects. The system detects animals, birds, cars, motorcycles, bicycles, airplanes, trains, insects, and drones (though you choose “bird” to track insects and “airplane” to track drones). My experience with Fuji’s most recent autofocus in a variety of cameras is that the AF system definitely works best when there is a trackable subject in frame.

The most recent firmware updates to cameras like my X-H2 and what’s present in the X-M5 do feel like a more significant improvement in terms of stills autofocus. I found that things don’t feel too far behind my other cameras for shooting stills.

Obviously focus is going to depend somewhat on the lens you have attached, but using the most recent generation of Fuji lenses produces good results (the new 16-55mm F2.8 II was used for the shot above). I did notice in my “around the house” shots that I’ve gotten very accustomed to having IBIS in my cameras, and I wasn’t quite as attentive to shutter speed as I should be, resulting in some unexpected motion blur in some of my shots captured with the X-M5.

I’m not sure I would treat this as an action camera. Fuji’s tracking capabilities vary quite bit according to what lens is attached, but even at its best it doesn’t quite match what other brands can do. More relevant here, however, is that tracking action (particularly in varying lighting conditions) without a viewfinder is TOUGH.

The burst speeds here vary according to what shutter is being used. The mechanical shutter has an upper limit of 8FPS, which does place it behind some of the competing cameras. You have the option to switch into electronic shutter mode, however, and get up to 20FPS with the full sensor and then up to 30FPS with a sports crop of 1.25x. These electronic shutter burst rates are faster than what competing cameras offer. As per usual, however, there will be some limitations with the electronic shutter in a camera that doesn’t have a particularly fast readout speed. Here’s a breakdown of some of the primary burst rates along with the buffer depth per file size and compression.

The lower resolution point of 26MP (relative to their 40MP sensor) helps considerably with buffer depth, as the JPEG buffer rates aren’t too bad, with as much as 173 frames (mechanical at 8FPS) or as little as 127 frames (electronic at 20FPS). If you try to get it all (Uncompressed RAW + JPEG), that buffer will fill really fast (in about a second)! The lossless compressed RAW (my preferred format) buffers are relatively shallow, but compressed RAW isn’t too bad. If this is your only camera, then by all means use it to capture action, but don’t buy this camera particularly for that purpose. Cameras without viewfinders are rarely top choices for capturing high speed action.

Fuji’s eye detection has definitely improved, with better recognition of the eye and better stickiness once the eye is acquired. One questionable ergonomic decision persists, however, in that Fuji separates human eye detection from AI detection of any other subject. This means that you have to separately access these two features, so if you want to assign eye detection to a button, for example, you can’t put both types of eye or subject detection on one button. I have to have two separate shortcuts set up on my X-H2, for example, which just means that you have one less thing you could map to your camera.

Some brands have started to add a smart auto subject detection mode, a move I applaud as it allows photographers to be more reactive to changing subjects and conditions. Fuji is improving in overall detection performance, but it does still lag somewhat behind competitors.

Video Autofocus

Video focus has been the area where I feel like Fuji has fallen the most behind. I have been able to rely on face detection to provide stable footage for my review videos when I’m in front of the camera for years on my Sony and Canon cameras. I don’t hesitate to set up a tripod with a wide variety of lenses and get in front of it, knowing that focus will be rock solid during the video clip. I used to shoot at least a portion of my review videos with the lens or camera that I was testing, but I stopped doing that early on with Fuji reviews because often there would be so much hunting and focus slippage that my audience would complain about how distracting it was.

This area, at least with good lenses, has improved on the X-M5. I shot some test segments using the XF 16-55mm F2.8 II and got reliable focus results when I was sitting in front of the camera. I didn’t notice any focus pulsing or slippage, and focus remained solid during the clip of roughly one minute in length. That’s progress, and it shows that the AI detection is certainly helping.

I also had good results while moving along in selfie mode while walking through the forest and talking to the camera. Focus changes are minimal in that scenario (the subject is mostly a constant distance from the camera), but I did have to periodically duck under branches and focus stayed consistent. I could see in the articulated screen that the tracking box was staying locked on an eye, though it it would occasionally swap eyes.

Where things really fell apart is during persistent movement, however. I ran multiple tests where I stepped into frame, pause for a moment to give the camera a chance to detect me, and then walked towards the camera. While the camera initially picked me up, focus was quickly lost as I started to move, as you can see above. This is a relatively simple test that most cameras from other brands handle just fine, so that’s an area for concern if your video capture includes action.

Video Performance

Outside of the video autofocus performance, video performance is actually a relative strength relative to the competition. Most competing cameras will top out at 4K60 recording (some even at 4K30 like the Canon alternatives), but the X-M5 will allow for open gate 6K recording. What is open gate? It is essentially allow for the whole sensor to be recorded…in its native ratio. We are accustomed to seeing video in 16:9 ratio, which would look like this:

There are plenty of 16:9 crops (and even 17:9) crops available here, but the open gate 6K is using all of the pixels of the sensor for recording video just as it would for recording stills. That results in a 3:2 aspect ratio, which looks like this:

There’s obviously a whole lot more on frame that would have been cropped out in a 16:9 crop. It gives more flexibility to the videographer in post, as with those extra pixels they could more easily produce a vertical crop for a reel:

This is what enables the camera to do the short clips in 9:16 (vertical) while in vlogging mode. It is taking the crop from the open gate image rather than requiring the photographer to rotate the camera vertically.

So, just know that you won’t get 6K 16:9 footage. If you want to do the typical widescreen look, you will have to do a 16:9 crop in post. The good news is that you’ll have more flexibility on how you choose to frame those shots, as you can crop closer to the top or bottom than would normally be allowed.

4K60 recording is also available, though that does come with a mild 1.18x crop (though that is more than the ZV-E10 II and its 1.10x crop). 4K30 or 4K24 is shot without any crop.

Bitrates range from 8Mbps to 200Mbps, and footage will come in either the MOV or MP4 wrapper depending on your choices. Here’s a list of some of the bitrates and framerates available.

There are high speed full HD modes available in either 17:9 or 16:9 aspect ratios with framerates as high as 240FPS. These will be shot in the higher 200Mbps bitrates.

Both FLog 2 and HLG recording are available, and of course all of Fuji’s film simulations and your custom tweaks can be made. There is a digital stabilization available when shooting movies, though that does come with a pretty significant crop attached to it (as much as 1.44x, depending on shooting mode).

Footage generally looks good. It has nice detail and color. My computer doesn’t recognize the codecs on the open gate footage, however, so that might be something to watch for.

Image Quality

The X-M5 used Fuji’s familiar 26.1Mpx X-Trans sensor. I’ve reviewed at least half a dozen cameras with this same sensor. The sensor was originally developed for the X-T3, where Fuji said of the X-T3’s sensor, “[with] a newly developed sensor, the X-T3 features an APS-C-format 26.1MP X-Trans CMOS 4 sensor, which has a back-illuminated design to afford smooth tonal rendering, improved low-light performance, and a low native ISO 160 setting. As an X-Trans sensor, it still utilizes the randomized pixel array, too, which provides a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and tonal transitions, while also reducing moiré and aliasing.”

It used to be that this was the higher resolution point of the Fuji X lineup, with a more standard Bayer 24MP sensor used on some lower models, but now a number of cameras utilize the higher resolution 40MP sensor.  This 26MP sensor is a good but not exceptional one.  I’ve spent time with and reviewed most all of the competition, so, my quick conclusion is that this sensor is a competitive but not a clear winner in any category.  Sony’s 26MP sensor sports a little more dynamic range (about a half stop) but slightly inferior high ISO performance.

After reviewing at least ten cameras with Fuji’s X-Trans sensors, I can safely say I personally think that the disadvantages of the X-Trans sensors outweigh the advantages over traditional Bayer sensers being used by competitors. Fuji says that the X-Trans sensor produces a more film-grain-like noise pattern, I don’t really see it, and it is rare that I run into the real world moiré issues that X-Trans supposedly reduces.

Here’s a look at the various file sizes and framing options:

If you don’t want the technicalities, here’s a brief summation of the sensor performance.  This sensor has a smaller native ISO range than cameras with the 40MP sensor, with an ISO range of 160-12,800 (those cameras have a base ISO of 125).  Most competing camera from Sony or Canon have a larger ISO range that starts even lower at ISO 100.  I like to charitably call this Fuji being conservative and avoiding the marketing extremes.  I have found that Fuji competes well with, say, Sony, across most of its ISO range (things even out around ISO 12,800).

Likewise, Fuji’s sensors don’t quite have the same amount of dynamic range as competing Sony sensors (close to a stop less DR at base ISO), though the Fuji sensors are more competitive at higher ISO values.  I found that shadow recovery is clean, but I start to see highlight clipping earlier on.  Fuji does have a feature called DR200/DR400 that open up at higher ISO values (320/640) that will sample the highlight information from the base ISO while taking the midtone and shadow information from the selected ISO value.  This does help the dynamic range to be more competitive.

I also find Fuji images a little more complex to sharpen, as the X-Trans sensors have a unique way of handling information.

But what the sensor does have is Fuji’s excellent color science.  Many people love Fuji colors (myself included), and they include a number of their film simulations that can give a unique “feel” to images and/or video footage.  I’m currently loving the REALA ACE profile for a great look that works well on a wide variety of images.  Fuji also has a fantastic JPEG engine, so if you just want to take photos and not spend a lot of time editing them to get the look you want, you may really enjoy the Fuji approach.  Fuji also does a great job with in camera correction profiles, and so often the JPEG output looks even better than what the RAW images might suggest is possible.  Note:  as there are no changes to the sensor itself, the following are results given from earlier reviews of this sensor (in this case from X-S20).

ISO Performance

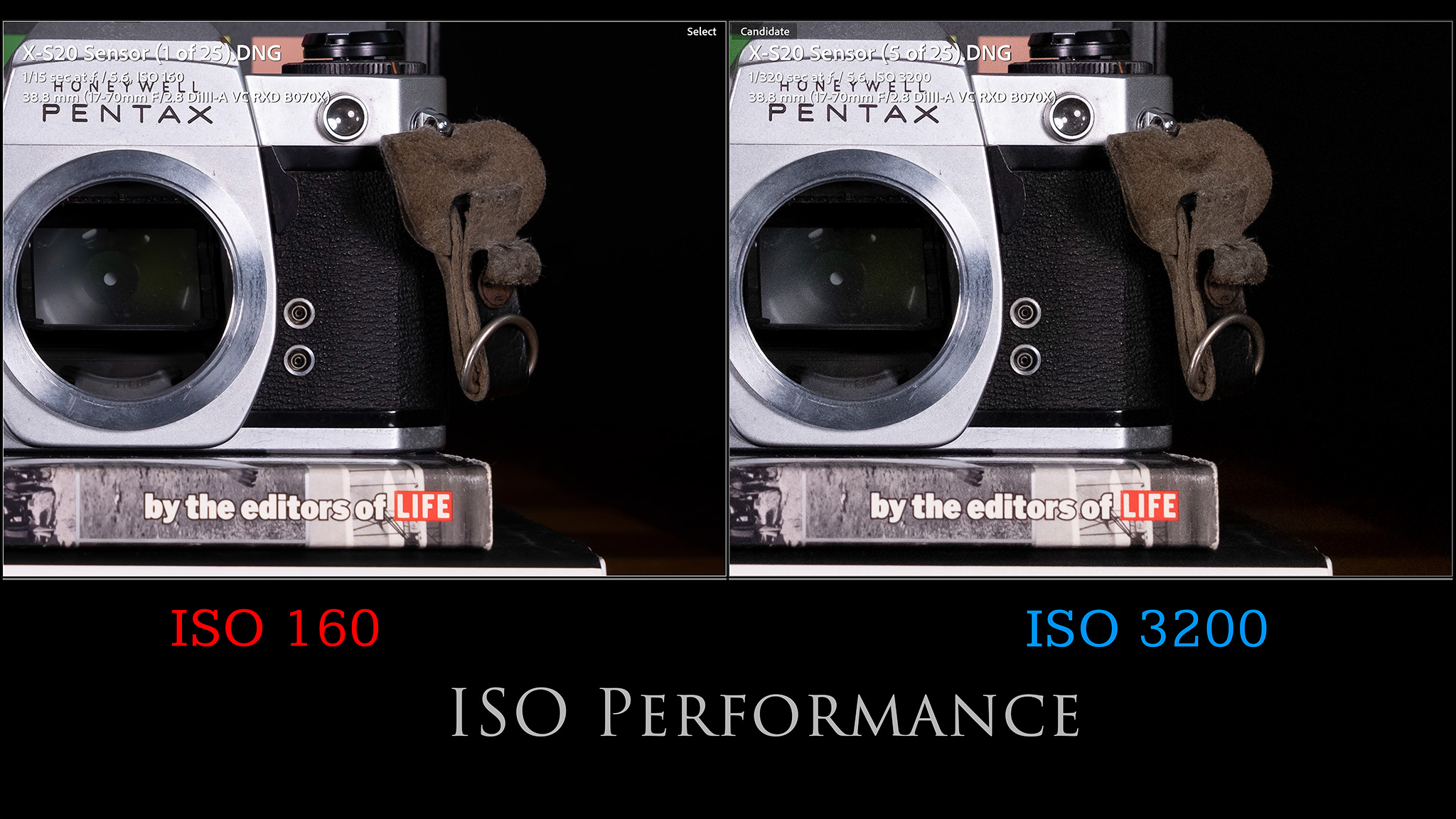

The native ISO range of Fuji’s 26Mpx X-Trans sensor is more limited than alternatives from Sony or Canon, running from ISO 160 to 12,800, with an expanded range going down to ISO 80 and moving up to 51,200 on the high end.  I personally don’t ever use expanded ISO ranges and consider them more marketing than actually useful..  The native range is usable throughout, and even images ISO 12,800 are perfectly usable in many situations.  Here’s a look at an image and crop of a guitar taken at ISO 12,800:

There’s some obvious noise at a pixel level, but the basic image is perfectly useful.  Here’s another image at ISO 12,800 where I’ve used the Fuji ACROS + G monochrome simulation, and I would argue that the noise in this image is quite film-like and pleasing.

So how about at lower extremes?  At ISO 800 there is a tiny addition of noise only detectable in the shadows.  There isn’t a lot of difference from base ISO, however, and moving on to ISO 1600 shows little difference.  At ISO 3200 there is slightly less contrast and slightly more noise, but still at a very acceptable level:

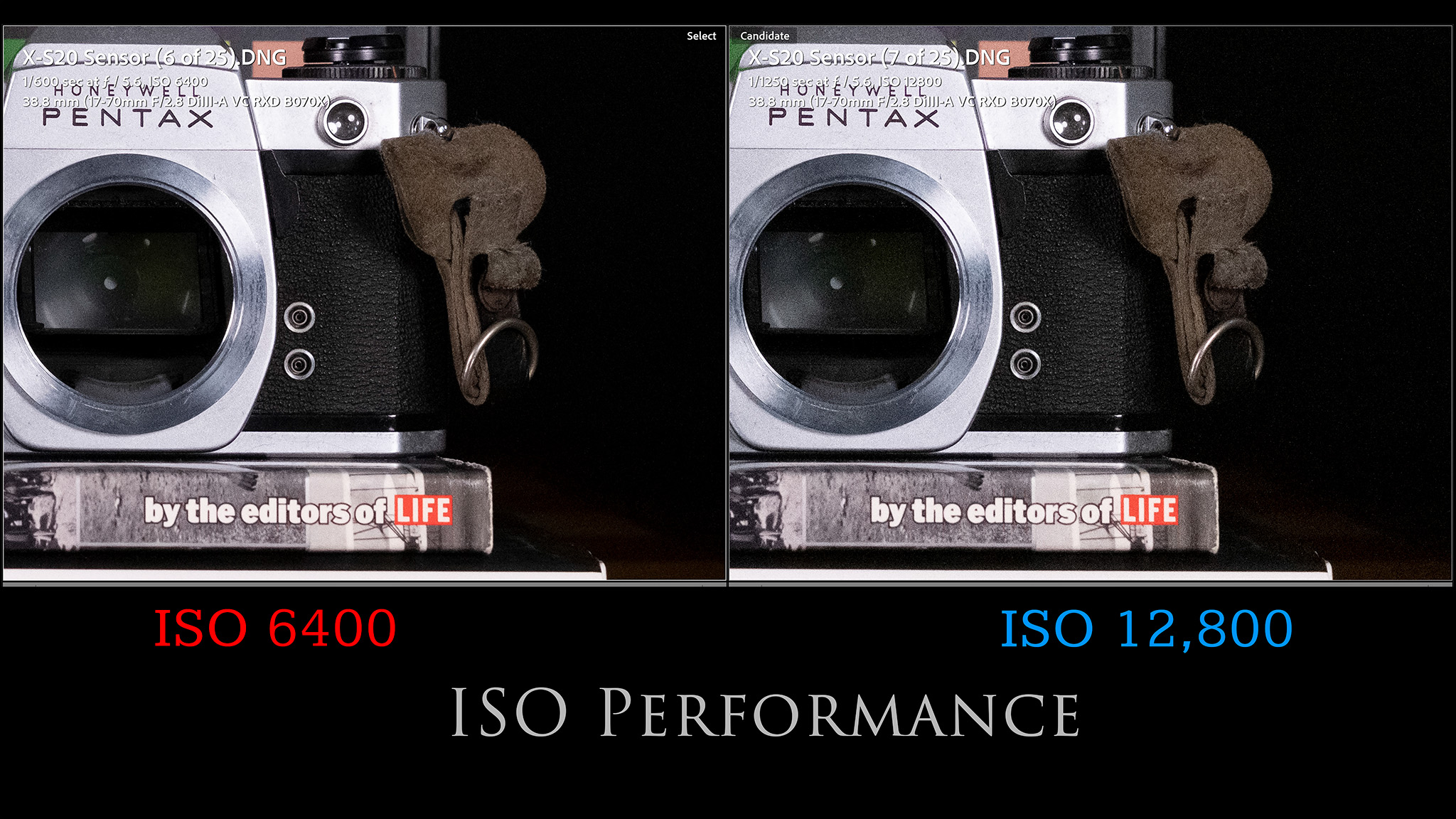

That pattern continues at ISO 6400 and 12,800, where the noise becomes rougher and more visible in shadow areas, with 6400 being cleaner than ISO 12,800.

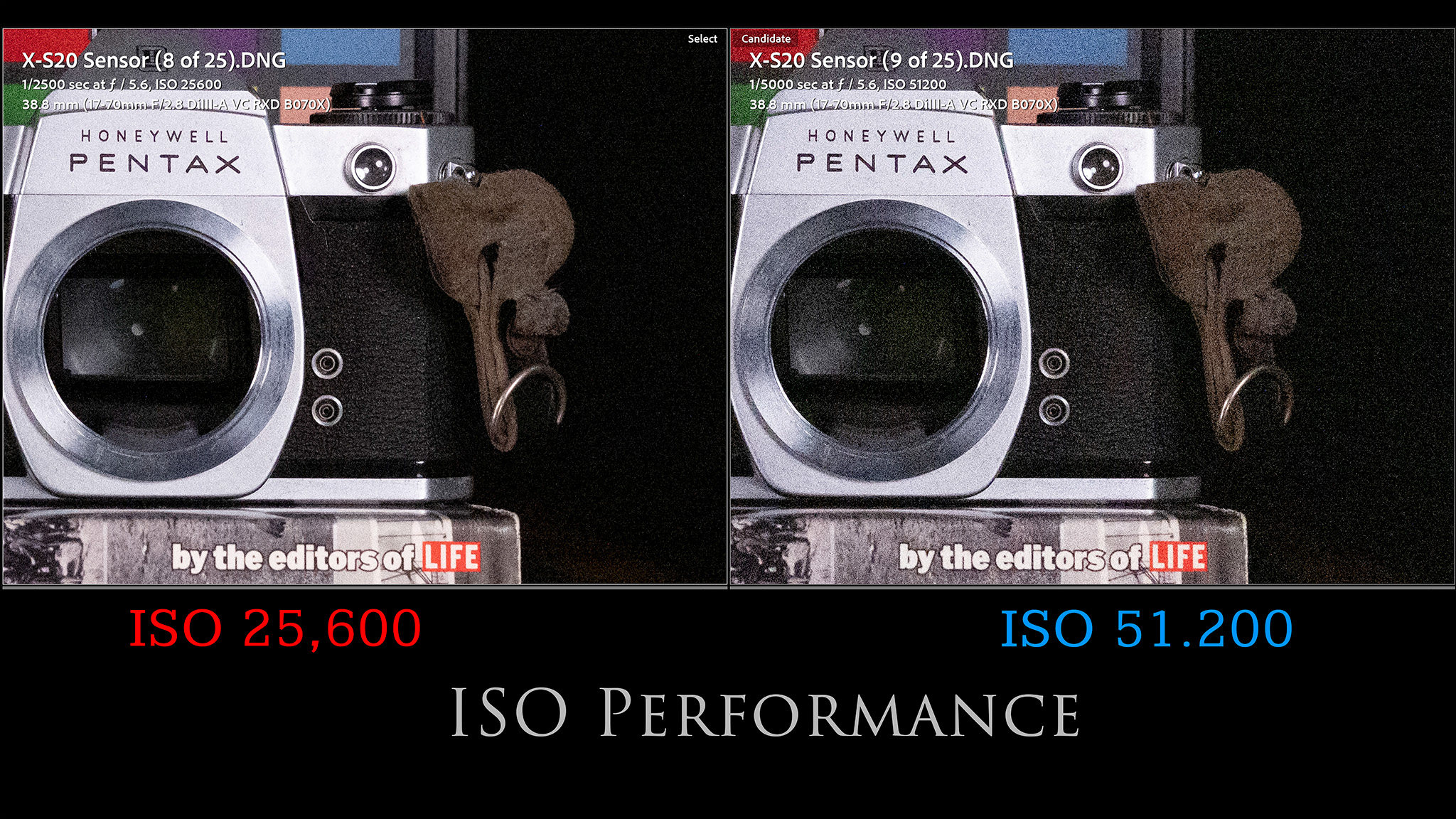

You can go up into an “extended” range that gives you the 25,600 and 51,200 options.  The first might be usable in non-critical situations, but few people will be happy with what ISO 51,200 is going to give you for any kind of application.

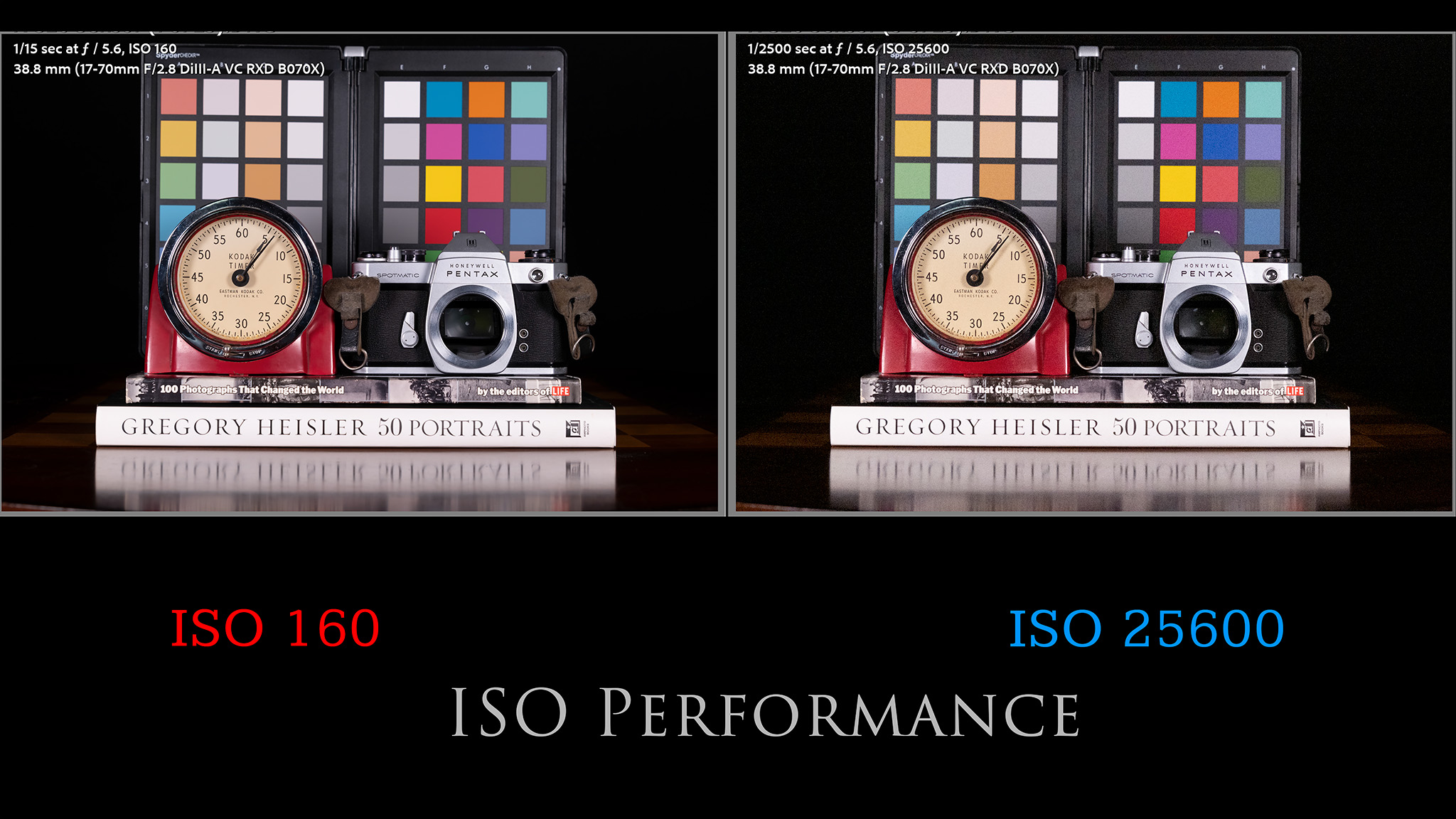

I will say that ISO 25,600 in particular does do a good job of “color fastness”.  If we step back and look at the images on a global level, we can see that the sensor has done a good job of keeping a consistent color balance without color shift or color banding.

This is a solid ISO performance, and this is at least one area where the older 26MP sensor found in the X-S20 is going to deliver better results than the larger resolution 40MP sensor of the X-H2 or X-T5.

Dynamic Range Performance

I value dynamic range within a camera in two specific areas:  the ability to cleanly lift shadows without introducing noise or color banding and the ability to recover highlights without introducing “hot spots” where information has been permanently lost.  The value of good dynamic range is in the margins of photography, as eliminating shadows or recovering blown out highlights doesn’t always produce the better image.  Having good dynamic range (particularly if you shoot RAW), allows you a lot more creative vision over how the final image will turn out (particularly with Adobe’s new AI tech for getting more information out of the sky).  This shot, for example, has all of the rich detail in the shadows and colors of the trunk of the fallen tree and the moss on it, but also allowed me to recover the sky rather than just a blown out mess.  This shot was taken with the new Fujinon XF 8mm F3.5, which is a very sweet little lens, by the way.

Fuji has an extra trick up its sleeve to help you maximize dynamic range performance in such scenes, which we’ll get to in just a moment.

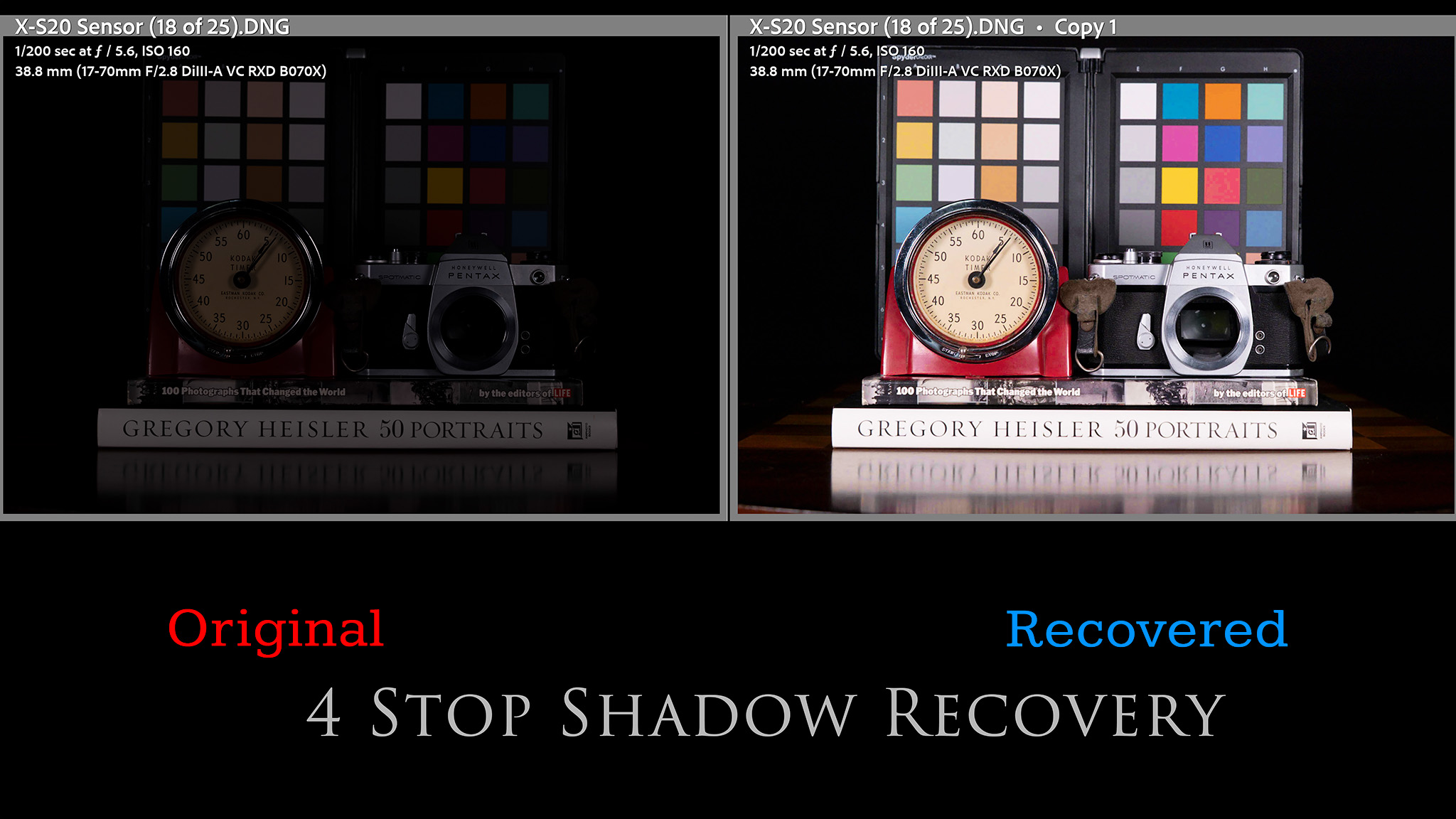

In my tests, I found that the X-S20 (or X-M5) did an excellent job of recovering shadows very cleanly. Here we have an image that I purposefully underexposed by four stops. As you can see in the original RAW image, there is very little information left there. In post I added those four stops back into the recovered image. What we find is an image that has been recovered with very little penalty.  Contrast looks good and the image is nice and bright.

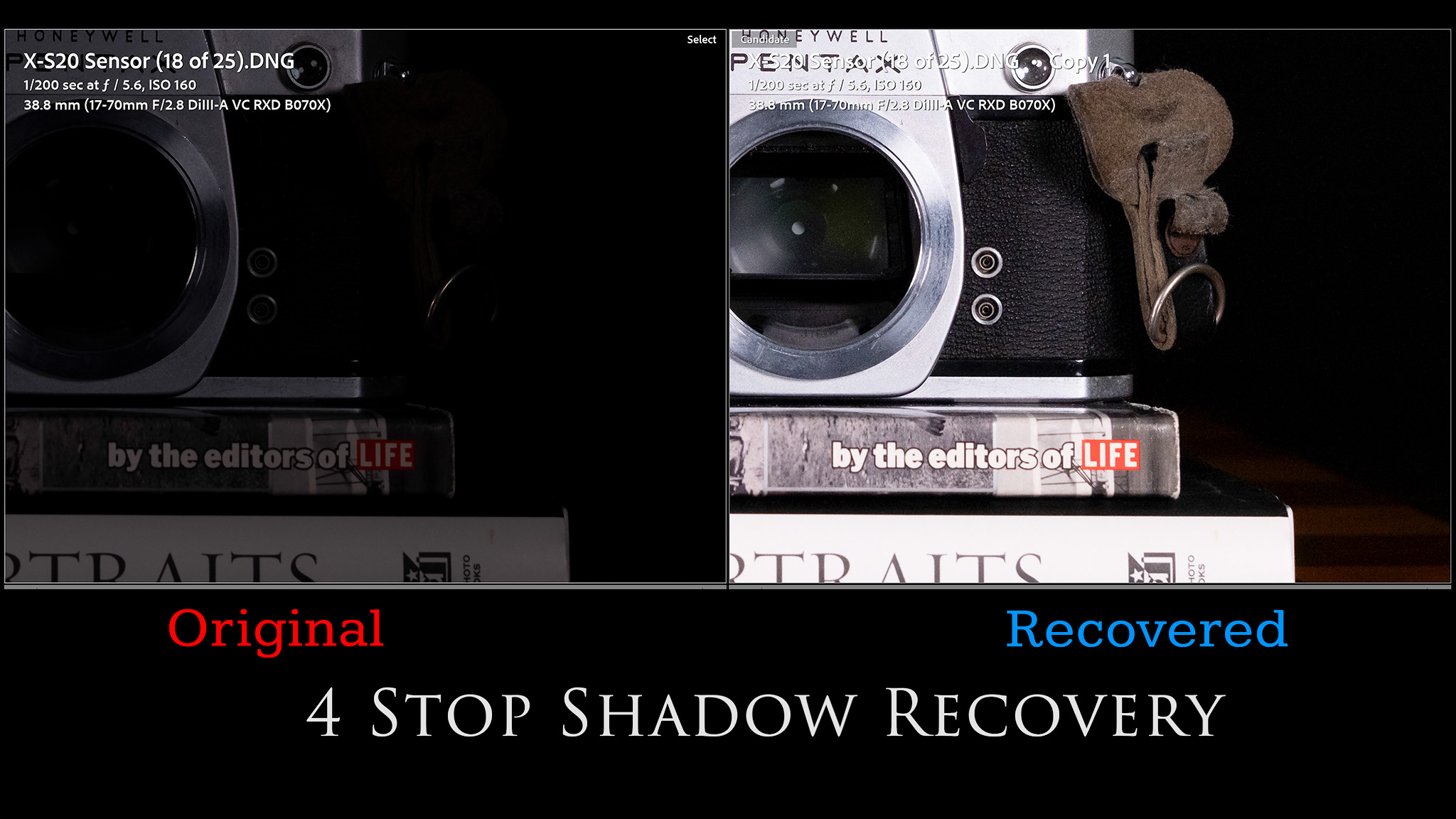

Here’s a look at that same image at a pixel level.  We see little additional noise, no banding or discoloration, and a nice restoration of contrast to the image.

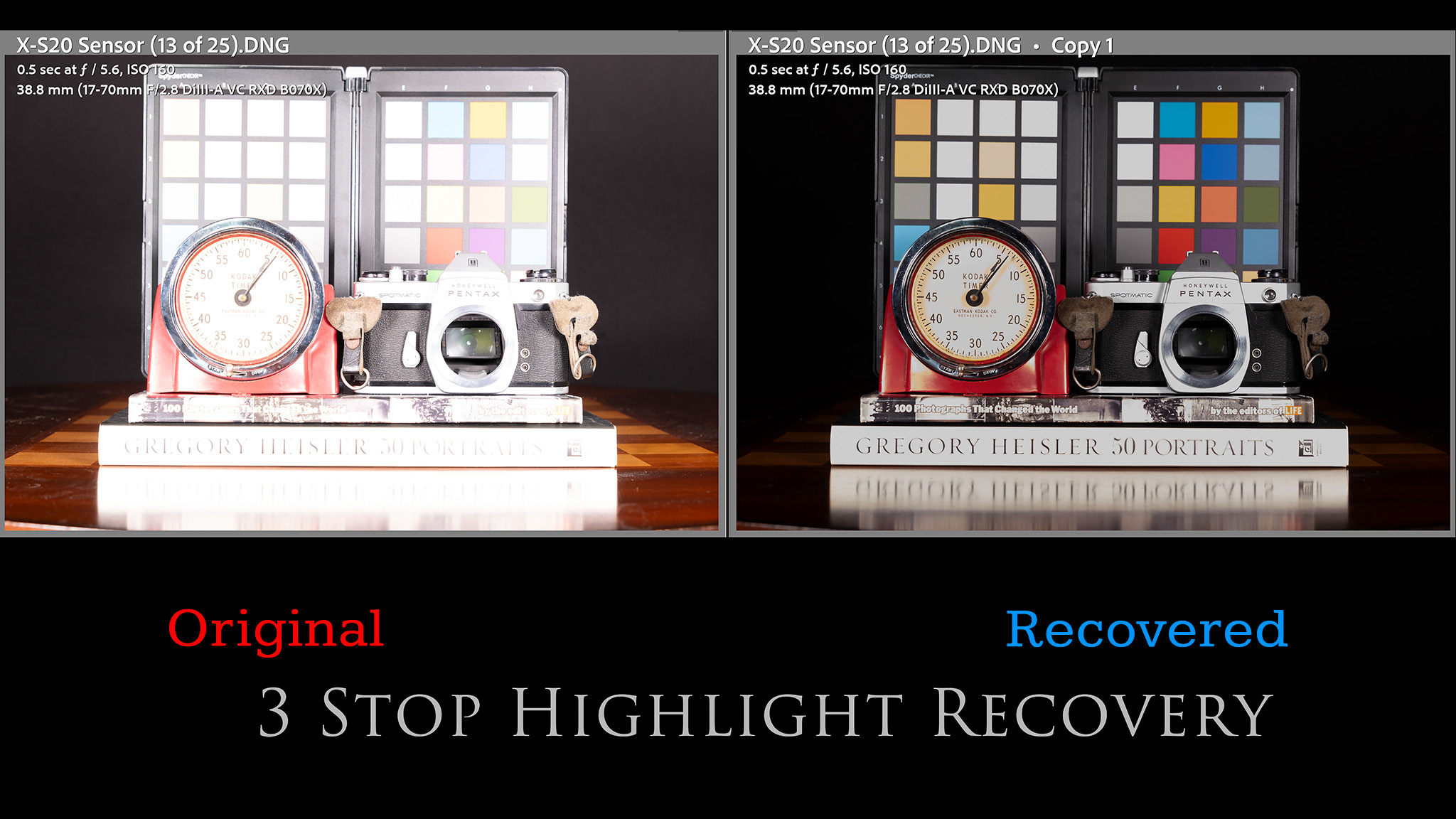

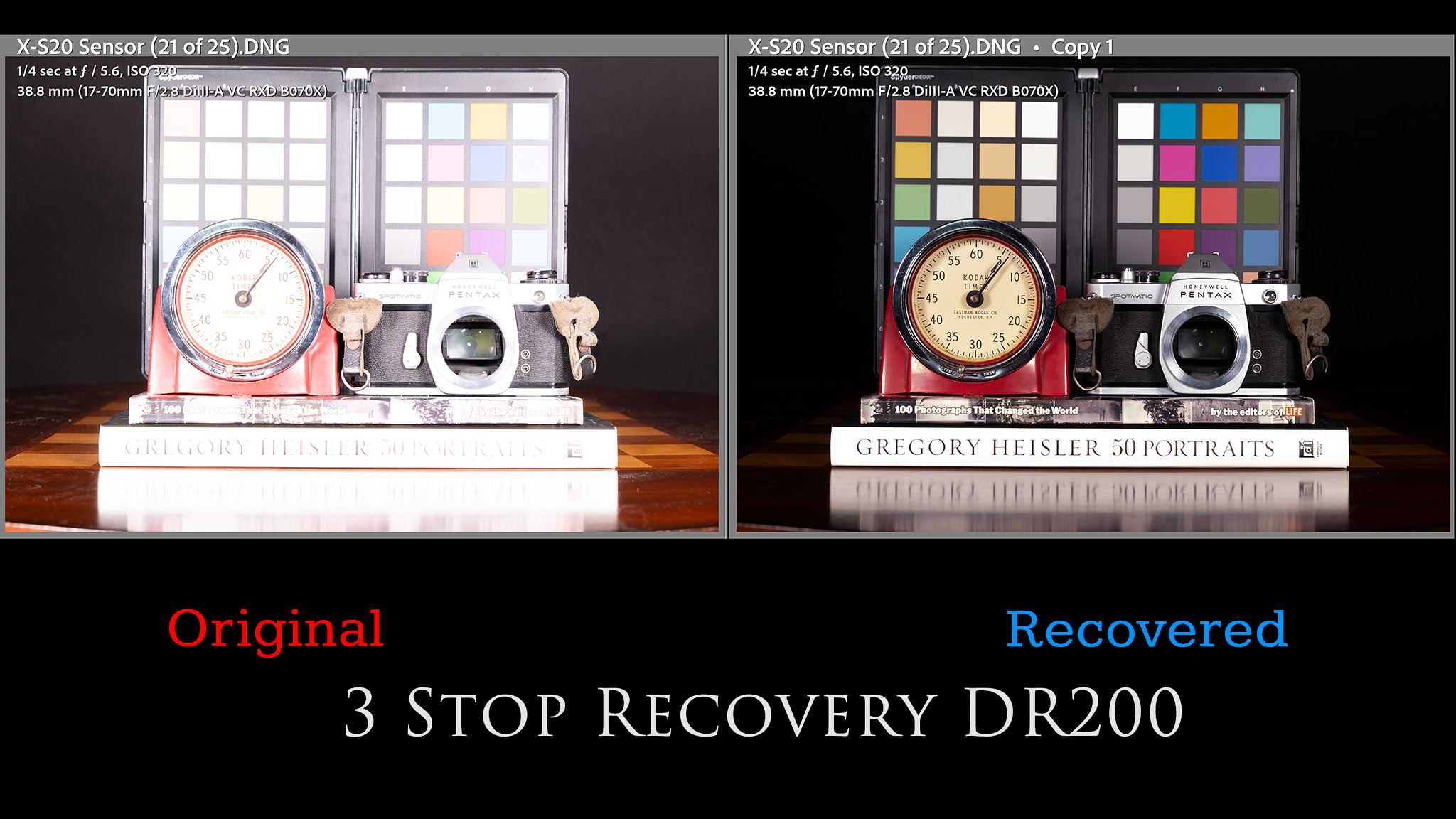

As is often the case, however, highlight recovery lags behind shadow recovery. While a 2 stop highlight recovery is nice and clean, by 3 stops the recovered image is not natural looking at all:

Moving beyond that is obviously a fools errand.  But Fuji does have a nice workaround if you want more dynamic range.  If you move beyond the base ISO to either ISO 320 or 640 (and beyond), two new options open up in the menu.  These are DR200 and DR400.  What these do is essentially split the sensor readout so that the shadow information is gathered from the current ISO setting while the highlight information comes from base ISO.  At ISO 320 that gives you one additional stop in the highlights, while at ISO 640 you gain two.  This allows you to overexpose the image slightly so that you have plenty of information in the shadows, but since there is one or two stops less exposure in the highlights, you have plenty of ability to recover blown out areas in post. A three stop highlight recovery using DR200 looks just fine:

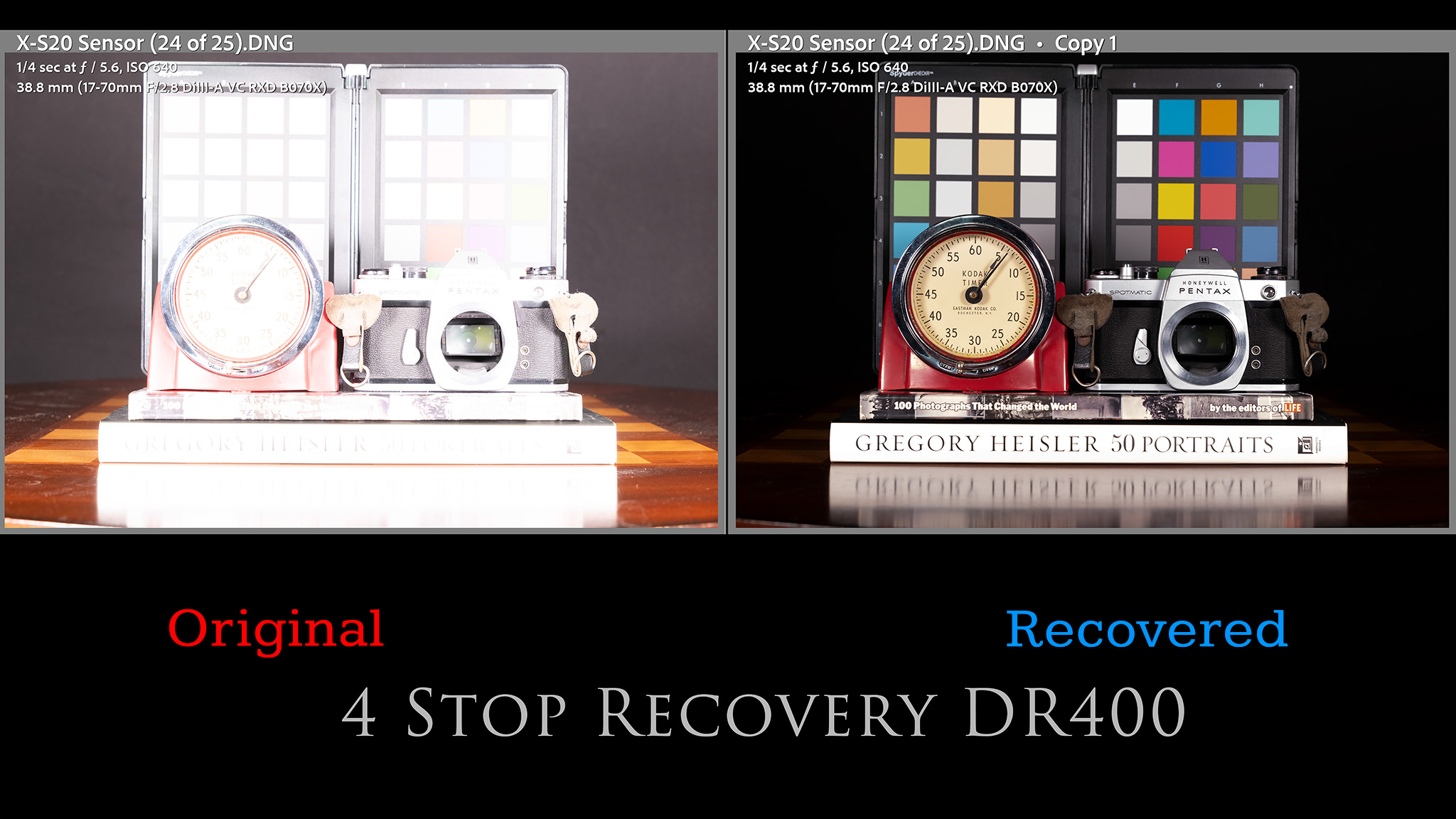

I can go even further using DR400.  Here’s a four stop overexposure (look how blown out the image is on the left), and how cleanly it recovers using DR400:

I certainly will often utilize this for landscape images when I’m shooting Fuji.  My priority was exposing for the interesting textures of the little barn in this shot, but rather than a white, blown out sky, I was able to recover something interesting in the sky to add to the image.

I personally enable DR400 in camera, and then it is ready if I have to raise the ISO level (either intentionally or not).  Dynamic range naturally diminishes as the ISO raises anyway, so it can be a way of getting better results when the ISO is up.  That’s not to say that you should shoot this way all the time, as often retaining contrast and either crushed shadows or blown out highlights makes for a better photograph, but having this technique available to improve dynamic range certainly has its uses…just don’t go too crazy on those sliders!!

X-M5 Color

Color science is the one area where there is a fair amount of consensus on Fuji.  It’s definitely something that Fuji does well, and I think it’s true both on the camera sensor side and in their optical glass.  Fuji color tends to be really nice, with good saturation levels and a pleasing transition of color tones.  I shot this image of a still lake with the 8mm F3.5 and the X-S20, and I think the colors look lovely.

Likewise a standard shot of the woods, where the greens look really rich but without feeling garish:

This shot of Nala (taken with the excellent Viltrox Pro AF 75mm F1.2) looks really rich:

Fuji has long been famous for their excellent film simulations. Fuji is pretty much a JPEG shooter’s dream, as you can tweak your recipes to get images you love right out of camera. RAW images with film simulations will arrive (as usual) flat in Lightroom, as you can easily apply any of 20 film simulations in post.

Here’s an example from the X-T4 shown first with Adobe’s Landscape profile.

Now Astia (Soft)

Now Classic Chrome

Provia

Velvia

Eterna (Cinema)

Classic Chrome is little less saturated but often has a tasteful look to it.  I find Velvia (which is Vivid) is often too intense for me, but can be great for landscapes.  Provia is the Standard, and it is fairly neutral.  Astia is “Soft”, and it’s another one I like.  A more recent addition to Fuji’s portfolio (REALA ACE) is one of my favorites for general purpose use.

I also enjoy the monochrome film simulations and also the ability to go into the menus and tweak the look in several ways.  For example, if I select Acros, I’ve got the added ability to select whether to apply a Yellow Filter (more contrast, darker skies), Red (slightly more extreme of yellow), or Green (for better skin tones).  There is also an option to warm or cool the monochrome image in camera.  You can move to near-sepia on the warm side and near-selenium on the cool side.  This shot of a coiled rope looks great in Acros + R (red filter):

You can also control grain (if that’s your thing) in camera as well.  Bottom line is that color science and the ability to manipulate color in camera remains a great strength for Fuji cameras…and you can utilize that same color science in video as well.

Conclusion

The Fujifilm X-M5 is a camera designed to appeal to a certain segment of the camera landscape. It will be Fuji’s lowest price current model at $799 USD (undercutting the X-T30 II by $100), but Fuji’s pivot to marketing it as a Vlog/creator’s camera is a potentially wise one. It does have a bit of the desirability factor of the X100VI, though as an interchangeable lens model.

It’s easy to define this camera by its shortcomings, but the truth of the matter is that the true competitors for this camera don’t have IBIS or even a viewfinder. Critiquing this model in particular for these lacks doesn’t seem just. I am more apt to critique the autofocus system which still lags noticeably behind competing cameras.

But Fuji also offers up a few more video features than competing cameras along with a great looking physical design. I don’t personally love the ergonomics here, but I could learn to live with them. Fuji’s rapidly growing library of first party and third party lenses is also a calling card, as no other brand is devoting as much attention to the APS-C space. If you can live with the shortcomings I’ve detailed here, the X-M5 is a solid option at its reasonable price tag of $800 USD.

Pros:

• Cool retro style (particularly in silver!)
• Interesting vlogging specific features
• Microphones give options
• More video features than competitors
• AI Tracking upgrade
• Huge video spec upgrade
• Cheaper than competitors
• More robust library of APS-C specific lenses on Fuji

Cons:

• Limited grip means that I’m “pinching” the camera
• Autofocus experience only so-so
• Lack of viewfinder makes composing in bright light tough
• Frustrating memory card access
• Q button placement is terrible
• Touchscreen functionality remains too limited
